Grid App

This application is a simplified grid management system.

Grid managers can register an energy resource (Wind, Hydroelectric, Solar, Gas, Coal, or Nuclear) and specify the maximum number of kW this facility can produce.

Once the resource is created, the manager can toggle whether the facility is online or offline, and the percentage of maximum wattage the facility is producing.

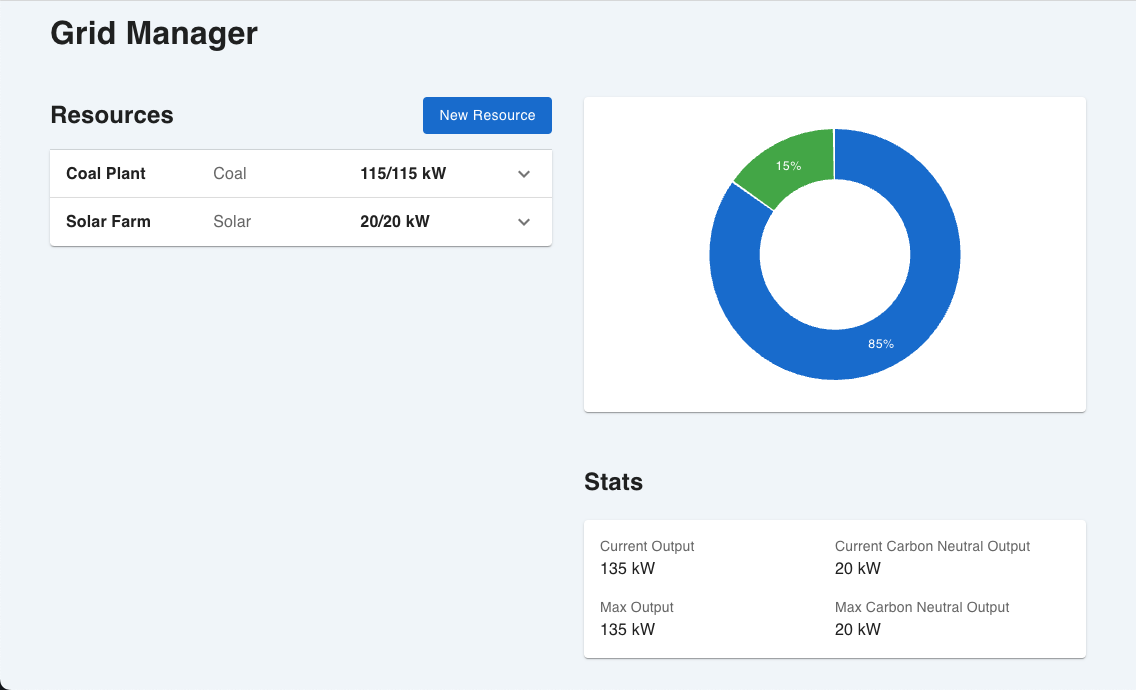

The app lists max output, current output, max carbon neutral output, and current carbon neutral output, and displays a pie chart of this data broken down by resource.

Stack

Client:

React Redux (RTK-Query) Typescript SCSS MUI

Server:

Flask SqlAlchemy Postgres

Running the Flask Server

1. Create a virtual environment

python3 -m venv venv

2. Activate the virtual environment

. venv/bin/activate

3. Install flask

pip3 install flask

4. Run the server

flask --debug run

Running the React/Redux/Typescript client

1. Make sure you are in the right directory

cd client

2. Install dependencies

npm i

3. Start the node server

npm start

Running client-side tests

cd client
npm run test

Building with Docker

1. Build and tag the image docker build -t grid-app .
2. You can run the image locally with docker run -p 5000:5000 grid-app (note port 5000 is used by Airplay on some macs, if so try 5001:5000)

Deploying with AWS Elastic Beanstalk and AWS RDS

1. Install the eb cli
2. Initialize the project: Navigate to the root directory and run eb init -p docker grid-app
3. Test it out by running eb local run --port 5000 - You should see a database error since we haven't configured postgres
4. Create the environment - eb create grid-app
5. View the environment in your browser - eb open
6. Build the image locally docker build -t <docker-id>/grid-app:latest .
7. Make sure the ENV and DB_URL variables are set properly in the EB console
8. Create a Postgres instance in RDS and make sure it's configured to allow connection from to the app's associated EC2 instance.
9. Run eb deploy every time you wish to deploy a new version of the app

Troubleshooting

If psycopg2 does not install on your M1 mac / virtual environment:

Try brew install openssl and linking it when you install psycopg2 manually:

export LDFLAGS="-L/opt/homebrew/opt/openssl@1.1/lib"
export CPPFLAGS="-I/opt/homebrew/opt/openssl@1.1/include"
pip install psycopg2
