feat(button-group): add ButtonGroup component

[stritt]

Summary

Adds a ButtonGroup component that visually joins related buttons into a single segmented control — action rows, icon toolbars, and split buttons (a primary action next to a dropdown trigger).

Motivated by a hand-rolled split-button snippet that flattened corners manually and used raw Tailwind colors (border-blue-700 dark:border-blue-600), which violate kumo's styling rules. ButtonGroup makes this a first-class, reusable component built entirely on semantic tokens.

Design

• Layout-only wrapper: children keep their own variant, size, and shape. The group flattens inner corners and overlaps borders (-1px) so adjacent buttons share a single seam — the seam color comes from each button's own ring, so it works for every variant without hardcoded colors.
• Orientation: horizontal (default) and vertical.
• A11y: role="group" by default, overridable (e.g. role="toolbar" with aria-label). Interacted buttons lift via z-index so focus rings aren't clipped by the overlap.
• Tokens only: no raw colors, no dark: — passes the custom color lint.

What's included

• Component + required variant exports (KUMO_BUTTON_GROUP_VARIANTS, _DEFAULT_VARIANTS, _STYLING), forwardRef, displayName
• 9 unit tests (render, role default/override, orientation, className merge, ref forwarding)
• Docs page (/components/button-group) with 6 demos (basic, split button, icon toolbar, icons+labels, vertical, sizes)
• HomeGrid showcase entry + sidebar nav entry
• Registry category mapping (Action) + changeset (minor)

Testing

• pnpm --filter @cloudflare/kumo test button-group → 9/9 pass

• pnpm --filter @cloudflare/kumo typecheck → clean

• pnpm --filter @cloudflare/kumo lint → no button-group issues

• pnpm --filter @cloudflare/kumo build + docs build (72 pages, button-group page renders)

• Reviews

• bonk has reviewed the change

• automated review not possible because: new component with visual/interaction behavior best verified by a human in the preview link

• Tests

• Tests included/updated

[pkg-pr-new]

npm i https://pkg.pr.new/@cloudflare/kumo@640

commit: 2b44260

[github-actions]

Docs Preview

View docs preview

Commit: 8f0ded5

[github-actions]

Visual Regression Report — 26 changed, 16 unchanged

26 screenshot(s) with visual changes:

Button / Variant: Primary

181 px (0.2%) changed

Before	After	Diff

Button / Variant: Destructive

3,539 px (4%) changed

Before	After	Diff

Button / Variant: Secondary Destructive

1,121 px (1.27%) changed

Before	After	Diff

Button / With Icon

904 px (1.02%) changed

Before	After	Diff

Button / Icon Only

112 px (0.13%) changed

Before	After	Diff

Button / Loading State

198 px (0.22%) changed

Before	After	Diff

Button / Link as Button

1,392 px (1.57%) changed

Before	After	Diff

Dialog / Dialog With Actions

297 px (0.34%) changed

Before	After	Diff

Dialog / Dialog Basic

405 px (0.46%) changed

Before	After	Diff

Dialog / Dialog Confirmation

855 px (0.97%) changed

Before	After	Diff

Dialog / Custom Max Width

954 px (1.08%) changed

Before	After	Diff

Dialog / Dialog With Select

500 px (0.56%) changed

Before	After	Diff

Dialog / Dialog With Combobox

480 px (0.54%) changed

Before	After	Diff

Dialog / Dialog With Dropdown

487 px (0.55%) changed

Before	After	Diff

Select / Select Basic

859 px (0.97%) changed

Before	After	Diff

Select / Select Sizes

3,065 px (1.89%) changed

Before	After	Diff

Select / Select Without Label

721 px (0.81%) changed

Before	After	Diff

Select / Select With Error

1,979 px (1.9%) changed

Before	After	Diff

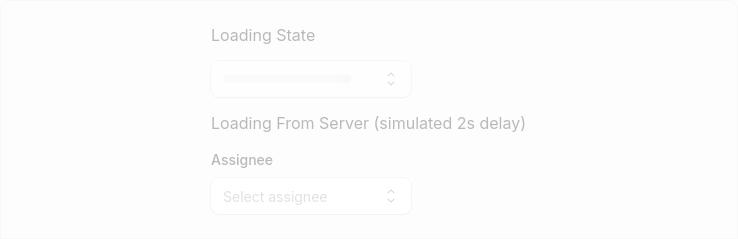

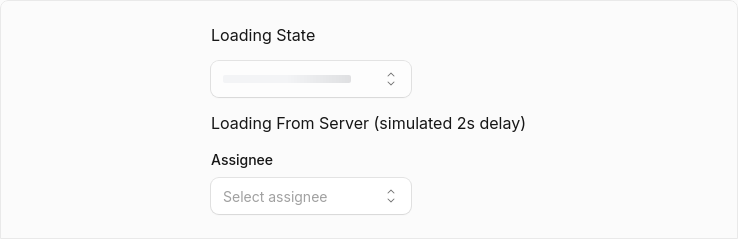

Select / Select Loading

0 px (0%) changed

Before	After	Diff

Select / Select Complex

1,655 px (1.59%) changed

Before	After	Diff

Select / Select Disabled Options

1,426 px (1.61%) changed

Before	After	Diff

Select / Select Disabled Items

771 px (0.87%) changed

Before	After	Diff

Select / Select Grouped

951 px (1.07%) changed

Before	After	Diff

Select / Select Grouped With Disabled

999 px (1.13%) changed

Before	After	Diff

Select / Select Long List

1,354 px (1.3%) changed

Before	After	Diff

Select (Open)

1,082 px (0%) changed

Before	After	Diff

16 screenshot(s) unchanged

• Button / Basic
• Button / Variant: Secondary
• Button / Variant: Ghost
• Button / Variant: Outline
• Button / Sizes
• Button / Disabled State
• Button / Title
• Button / Disabled Link
• Dialog / Dialog Sizes
• Dialog / Dialog Alert
• Dialog (Open)
• Select / Select With Description
• Select / Select Placeholder
• Select / Select With Tooltip
• Select / Select Custom Rendering
• Select / Select Multiple

---

Generated by Kumo Visual Regression

[mattrothenberg]

Love this. We should probably use Base UI's Toolbar primitive here, no? https://base-ui.com/react/components/toolbar

[ArshVermaGit]

Looks good to me. The component is implemented cleanly, with clear docs, demos, and test coverage. It fits well with the existing component library. LGTM.

OK, my suggestion is not good here. Gonna offer a different idea instead

[mattrothenberg]

I took another look and I think I was being a little too broad with my original suggestion. I don't think every ButtonGroup needs to be built on Base UI's Toolbar, especially a split button where normal Tab behavior makes sense.

The part I am still worried about is encouraging this:

<ButtonGroup role="toolbar" aria-label="Formatting">
  {/* buttons */}
</ButtonGroup>

Adding the role also opts us into the toolbar keyboard contract: one Tab stop, arrow-key navigation between controls, roving tabindex, etc. ButtonGroup doesn't implement that behavior, so it would be easy for consumers to create something that looks and announces itself as a toolbar without actually behaving like one.

Could we keep ButtonGroup focused on visual grouping and split-button use cases, and point people to the existing Base UI-backed Toolbar for actual toolbars? Roughly:

// Related actions / split button
<ButtonGroup>
  <Button>Deploy</Button>
  <Button aria-label="More deployment options">...</Button>
</ButtonGroup>

// A real toolbar with toolbar keyboard behavior
<Toolbar aria-label="Text formatting">
  <Toolbar.Button aria-label="Bold">...</Toolbar.Button>
  <Toolbar.Button aria-label="Italic">...</Toolbar.Button>
  <Toolbar.Button aria-label="Underline">...</Toolbar.Button>
</Toolbar>

So I think the component itself is reasonable; I would just remove the role="toolbar" recommendation and the toolbar example from these docs.

[stritt]

@mattrothenberg re: using Base UI's Toolbar primitive here — dug into this and reworked the component around it:

kumo's Toolbar is already built on Base UI's Toolbar primitive (@base-ui/react/toolbar). So rather than have ButtonGroup reinvent a toolbar, I've narrowed its scope:

• ButtonGroup is now documented/scoped to the split button pattern (a primary action + a dropdown trigger). It renders a plain role="group".
• Removed the toolbar-flavored demos (the role="toolbar" icon set, segmented rows, etc.).
• Added a "When to use" section that directs grouping multiple independent buttons/inputs to Toolbar — i.e. the Base-UI-backed primitive you pointed to.

I deliberately did not build ButtonGroup on Base UI's Toolbar.Group, because that part calls useToolbarRootContext() and requires a Toolbar.Root ancestor — which imposes roaming-tabindex / arrow-key navigation. That's correct for a toolbar but wrong for a standalone split button, which should keep normal tab focus. Toolbar.Group renders role="group" anyway, so ButtonGroup matches its semantics without the inappropriate root requirement.

Net: real toolbars → Toolbar (Base UI primitive); tightly-coupled split buttons → ButtonGroup. Lmk if you'd still prefer it folded into Toolbar entirely.

[mattrothenberg]

@stritt 100% agree. Let's proceed with this approach!
