Add Quark malware analysis report for AhRat

[pulorsok]

This report analyzes the AhRat malware family using Quark's rule classification. AhRat is an Android remote access trojan (RAT) derived from the open-source AhMyth project. It was publicly disclosed by ESET in May 2023 inside the "iRecorder — Screen Recorder" application on Google Play (~50,000 installs at the time of takedown), and continues to circulate as repackaged flashlight, screen-recorder, and utility apps in third-party Android stores. This run did not generate a new rule for AhRat: the family's most distinctive bytecode patterns (microphone audio capture, camera photo capture, SMS reads AND sends, last-known-location lookups) are already covered by Quark's existing rule set. Check here for the rule set details.

Quark's rule classification flagged 15 of 15 AhRat samples as high-risk in this experiment (detection rate 100%). Benign-cohort false-positive rate was not measured here. See tested APKs below.

Identified Well-Known Threats

This section uses MITRE ATT&CK Mobile as its reference taxonomy, anchored to the S1095 AhRat software entry. Of the 15 techniques documented for the family, Quark's static bytecode analysis surfaces the 5 listed below; the other 10 rely on runtime or network observation, or are not exercised by the samples in this cohort.

MITRE Technique	Real-world manifestation in AhRat
T1429 Audio Capture	Recording microphone audio via MediaRecorder from an attacker-authored MicManager helper for on-device surveillance
T1430 Location Tracking	Reading the device's last-known GPS coordinates via LocationManager.getLastKnownLocation for later collection by the RAT dispatcher
T1513 Screen Capture	Decoding a raw JPEG byte buffer into a Bitmap and recompressing it back to a JPEG payload for the RAT dispatcher to ship out
T1533 Data from Local System	Querying the SMS and call-log content providers with ContentResolver and copying the message body / address / metadata into a JSON object
T1582 SMS Control	Dispatching operator-driven SMS actions from a C2 socket — the SocketManager receiver routes commands to helpers that both read the inbox and issue outbound SmsManager.sendTextMessage sends

All cluster representatives below were extracted from sample c90bb703a45863aa5e7fdc60a4ad32f933adca82ecddb1c42cf35a17f8078434.apk — chosen as the representative sample whose detected behaviors most fully cover the documented profile of AhRat. The other 14 family samples were used to compute the detection-rate figure above.

Each section below corresponds to one technique from the table above. Within each section we first quote the MITRE definition, then walk through the call sequence and list the underlying rules.

1. T1429 Audio Capture

T1429 Audio Capture — attack.mitre.org

MITRE definition (T1429): Adversaries may capture audio to collect information by leveraging standard operating system APIs of a mobile device. Examples of audio information adversaries may target include user conversations, surroundings, phone calls, or other sensitive information.

Lcom/lahsuak/apps/flashlight/connect/MicManager;startRecording (an attacker-authored helper class bundled inside a repackaged "flashlight" carrier app) initializes a MediaRecorder with the microphone as its audio source and starts recording ambient audio to a file. The captured audio is then read back by the RAT dispatcher for delivery to the operator.

Behaviors detected by Quark:

• Initialize the recorder and start recording (Clean Up the Direct Use of MethodAnalysis (Sourcery refactored) #198)

2. T1430 Location Tracking

T1430 Location Tracking — attack.mitre.org

MITRE definition (T1430): Adversaries may track a device's physical location through use of standard operating system APIs via malicious or exploited applications on the compromised device. On Android, applications holding the ACCESS_COARSE_LOCATION or ACCESS_FINE_LOCATION permissions provide access to the device's physical location.

Lcom/lahsuak/apps/flashlight/connect/LocManager;getLocation (an attacker-authored helper class bundled inside a repackaged "flashlight" carrier app) calls LocationManager.getLastKnownLocation and then reads the latitude/longitude off the returned Location instance. The call sequence returns the device's last-known GPS coordinates to the RAT dispatcher, matching the location-collection surface T1430 describes.

Behaviors detected by Quark:

• Get last known location of the device (Modify the update mechanism of quark-rules according to issue #114 #115)

3. T1513 Screen Capture

T1513 Screen Capture — attack.mitre.org

MITRE definition (T1513): Adversaries may use screen capture to collect additional information about a target device, such as applications running in the foreground, user data, credentials, or other sensitive information.

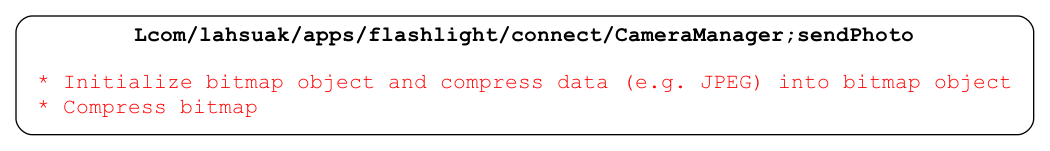

Lcom/lahsuak/apps/flashlight/connect/CameraManager;sendPhoto (an attacker-authored helper class bundled inside a repackaged "flashlight" carrier app) decodes a raw JPEG-byte buffer into an in-memory Bitmap and then compresses that bitmap back out to a JPEG stream for exfiltration by the RAT dispatcher. This decode-then-recompress pattern is how AhRat's photo-collection helper packages a fresh camera frame into a network-ready payload before shipping it to the operator.

Behaviors detected by Quark:

• Initialize bitmap object and compress data (e.g. JPEG) into bitmap object (Create LICENSE #1)
• Compress bitmap (Add multiple OSes in Github Action #269)

4. T1533 Data from Local System

T1533 Data from Local System — attack.mitre.org

MITRE definition (T1533): Adversaries may search local system sources, such as file systems or local databases, to find files of interest and sensitive data prior to exfiltration. Access to local system data, which includes information stored by the operating system, often requires escalated privileges.

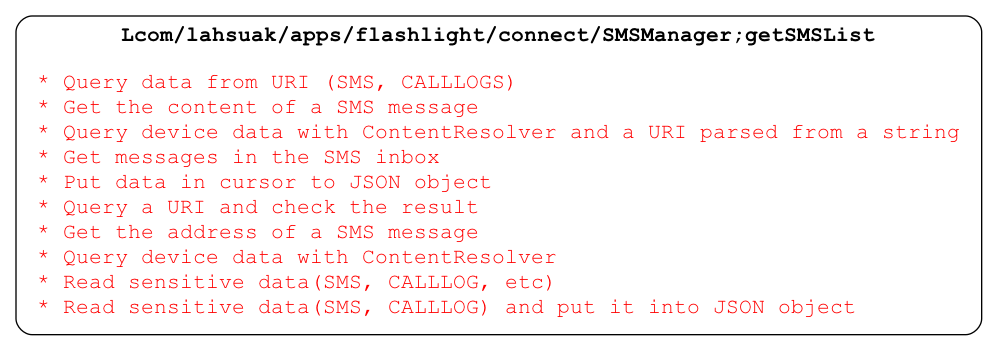

Lcom/lahsuak/apps/flashlight/connect/SMSManager;getSMSList opens a ContentResolver cursor against the SMS and call-log content URIs, iterates the result set, and copies message body / address / call metadata fields into a JSON object. This is the local-database read step that satisfies the "search local system sources ... to find files of interest and sensitive data" clause of T1533; the returned JSON object is the collected artefact.

Behaviors detected by Quark:

• Query data from URI (SMS, CALLLOGS) (Welcome gwalstat #11)
• Read sensitive data(SMS, CALLLOG, etc) (UnicodeEncodeError: 'gbk' codec can't encode character '\u037d' #77)
• Get messages in the SMS inbox (Show Parent Functions' Cross-References in Rule Classification #191)
• Query device data with ContentResolver (Add an Optional Parameter Filter For JSON Rules #212)
• Query device data with ContentResolver and a URI parsed from a string (Backward Compatible API #222)

5. T1582 SMS Control

T1582 SMS Control — attack.mitre.org

MITRE definition (T1582): Adversaries may delete, alter, or send SMS messages without user authorization. This could be used to hide C2 SMS messages, spread malware via SMS, or various external effects.

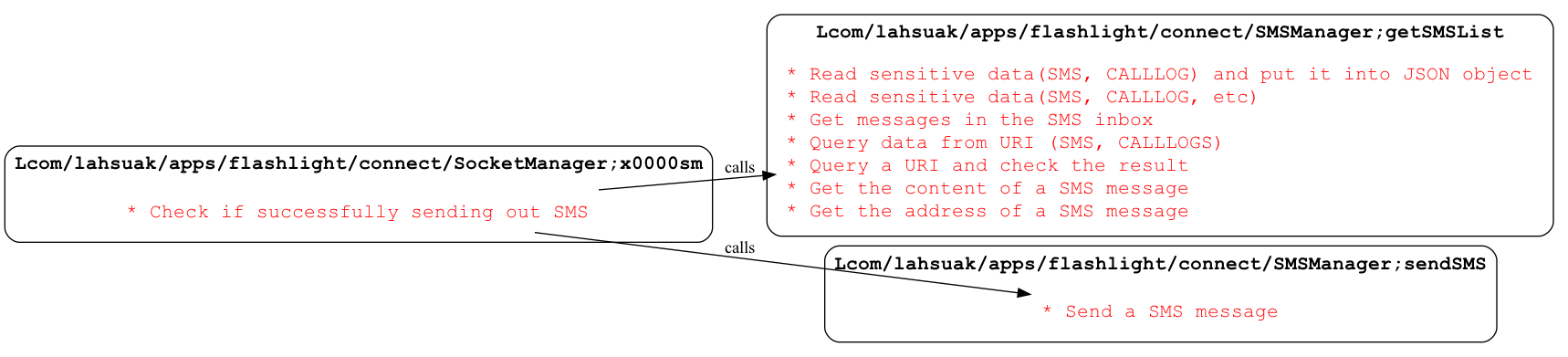

Lcom/lahsuak/apps/flashlight/connect/SocketManager;x0000sm is the C2 message dispatcher: it receives operator commands over the socket and routes each command to a dedicated helper. Two of those helpers — SMSManager;sendSMS and SMSManager;getSMSList — wrap the platform SmsManager.sendTextMessage and the SMS-inbox ContentResolver query respectively. Together they let the remote operator both inject outbound SMS and pull inbox content on demand.

Behaviors detected by Quark:

• Check if successfully sending out SMS (make python script executable #8)
• Send a SMS message (Show Parent Functions' Cross-References In Rule Classification (Sourcery refactored) #193)
• Query data from URI (SMS, CALLLOGS) (Welcome gwalstat #11)
• Read sensitive data(SMS, CALLLOG, etc) (UnicodeEncodeError: 'gbk' codec can't encode character '\u037d' #77)

List of Tested APKs

The table below lists the APKs we tested.

index	sha256
1	057689E28C35811575811BEAA1FA07BDC0130188F4590D286A564A0236060048
2	0C258DE0590AEFC9B66BE08A33015581373E19FE9887355C57D9FEF59153906A
3	0C485D9CBF8AAE82788B863512C750EA0B01A859AC4C7AE2461ED52482C02FED
4	1D000EF8D964BA22ACF820DEBD2C24222FF34353C145D69E4266EB2CC7588BA3
5	1E1E23C920EEACA8E9FFC1F946FCB978FA2419815B7B5DCF9A1CCA9B934F8C4B
6	2AEC43A86C635CAE0EC5F4BD2E216EBA61DA36B65068A86DA324224627193BCE
7	4D814FDFB79B50F4DA1CDCC3ACA7FBCC4C9C1826CDBDCCE86CFD72906DBE8F8F
8	4D89AFB5E33AE85630D73D0B3D9765F523B9E0B6E1E80E4CE50780EA486B8315
9	6DE9C4A91A1D17473029AA0C7CA98580779734282CB91BF7AA7B8DD54CD6C6B6
10	8542C3F7C5AC22933F95529085B73F98F6AE7F1548E9AC1B57A7CF9458500A1D
11	A156A76D2041D01594D791DA97E8EB9179841FE0DFC3C6831F8F413CACC0A3DE
12	BCE898587F683C70EA12B8612DD9DC1F791FA748E7C1F4584F4AFB2009A1E135
13	BFC577EA1B9B326609D857E0C7EA4C7DB5C382F86B3FAEB92E9230DA650B3AF9
14	C90BB703A45863AA5E7FDC60A4AD32F933ADCA82ECDDB1C42CF35A17F8078434
15	CDD0D2E6639BFB11299B168748C77BCED8821075C6CB04ED4B1F888A369228FD
