Diopsis

See every pixel your change moved, before anyone else does.

You nudged a card's padding. Somewhere across two hundred stories, four of them shifted too — and you will find out in review, or you will not find out at all. The screenshot part is easy; what breaks is everything around it. A live clock, a font that loads late, an animation caught mid-flight, and the suite fails for reasons nobody believes, so the team mutes it. Then when a run does fail honestly, no git forge will render a pixel-level image diff, so the reviewer sees "screenshot changed" and two files that tell them nothing.

Diopsis screenshots your built static Storybook and diffs each story against baselines committed in your own repository.

$ npx diopsis run
Diopsis · 7 stories → 13 captures · darwin-arm64
  config    diopsis.config.ts
  storybook storybook-static
  baselines __screenshots__

  8 unchanged · 5 changed

  ~ card--default @320  2,684 px differ
  ~ card--default @1280  3,150 px differ
  ~ card--long @320  6,328 px differ
  ~ card--long @1280  6,212 px differ
  ~ card--wide-only @1280  3,204 px differ

  report   .diopsis/report.html
  summary  .diopsis/summary.json

  Accept as the new baseline:  npx diopsis accept

And when something did change, the report shows you exactly what — baseline beside current render, changed stories first:

Needs Node 18+, a built static Storybook, and @playwright/test as a peer dependency; runs on macOS, Windows and Linux, but baselines CI will agree with are generated in Linux via Docker. Chromium only — no cross-browser matrix, no interaction testing, no accessibility audit, and no hosted service of any kind.

Your first run

Build your Storybook first — npm run build-storybook in a standard setup — then:

npm install --save-dev diopsis @playwright/test
npx playwright install chromium
npx diopsis init      # writes the config, git settings and a CI recipe
npx diopsis update    # generate the first baselines from the build
git add __screenshots__ && git commit -m "Add visual baselines"

From here npx diopsis run verifies every story against what you committed.

@playwright/test is a peer dependency deliberately: browsers are downloaded once, and there is never a second copy on a different version. Diopsis itself has zero runtime dependencies. Node 18 or newer; a TypeScript config file needs Node 22.18+, where Node can strip types on its own — below that, diopsis init writes diopsis.config.mjs instead, the same object without the annotations.

Setting up with an AI agent? Paste this prompt.

Set up diopsis, a visual regression tool, in this project. Install diopsis and
@playwright/test as dev dependencies, run `npx playwright install chromium`,
then `npx diopsis init`. Build the project's static Storybook (a standard setup
has a build-storybook script). Then run `npx diopsis update` to generate first
baselines, commit the __screenshots__ directory, and run `npx diopsis run` —
it should report every capture unchanged.

To demonstrate a real detection: make a small visible style change to any
component, rebuild the Storybook, and run `npx diopsis run` again — it should
list the changed captures with pixel counts and exit non-zero. Revert the
change afterwards.
# Human steps, not yours: open .diopsis/report.html in a browser to review
# the visual diff, and run `npx diopsis accept` only when a change is wanted.

What you get

Captures that do not flake	A frozen clock, settled fonts and images, animations disabled, locale and timezone pinned — all on by default
Baselines that cannot collide	Platform and architecture in every snapshot path, so a local run can never overwrite what CI reads
A diff you can actually review	A self-contained HTML report with four ways to compare each pair, largest change first, filterable and keyboard-driven
A machine-readable result	summary.json with every capture and changed story id, for your existing CI bot
Visible cost	diopsis doctor reports capture count, baseline weight and orphans before they become a problem
Nothing to sign up for	Zero runtime dependencies, no uploads, no account, no dashboard

How it works, in plain words

Diopsis reads the built output of your Storybook, never your source. It takes the story index the build already produced, expands each story across your configured widths, serves the folder from a small built-in web server, and photographs each story in Chromium.

The unit that matters is the capture, not the story. Ninety stories across four widths is 360 captures, and every cost that matters — how long a run takes, how much your repository weighs, how much there is to review — scales with captures. Diopsis counts them that way everywhere, so the number you see is the number you pay.

Each capture is compared against a PNG committed in your repository at a path carrying the platform that produced it. That is the whole model: your baselines are files in your repo, reviewed in your pull request, with no state anywhere else. Accepting a change is copying a file and committing it.

Setup

npx diopsis init scaffolds everything and prints what your viewport matrix will cost, which is the moment that decision is cheap:

$ npx diopsis init

Cost of the matrix, for this Storybook:

  widths                     captures    estimated weight
  1280                            7    560 KB
  320, 1280                      13    1.0 MB   (configured)
  320, 768, 1024, 1280           25    2.0 MB

It writes diopsis.config.ts, marks baselines binary and unmergeable in .gitattributes so a rebase conflicts loudly instead of silently producing a corrupt PNG, ignores the run output, and prints a CI recipe pinned to the same image your config names.

Configuration

import type { UserConfig } from 'diopsis';

export default {
  storybookDir: 'storybook-static',
  snapshotDir: '__screenshots__',
  viewports: { default: [320, 1280] },
  viewportHeight: 900,
  image: 'mcr.microsoft.com/playwright:v1.62.1-jammy',
  stabilize: {
    freezeClock: '2026-01-15T12:00:00Z',
    waitForNetworkIdle: true,
    disableAnimations: true,
  },
  mask: ['[data-diopsis-ignore]'],
  compare: { threshold: 0.2, maxDiffPixelRatio: 0.001 },
} satisfies UserConfig;

Per-story viewports

Override widths with a story tag rather than a map kept somewhere else — the story index serialises tags but not parameters, so an external map drifts silently and nobody notices.

export const WideOnly = { tags: ['diopsis:1280'] };      // this story, at 1280 only
export const Handheld = { tags: ['diopsis:mobile'] };    // a named set from your config
export const Untestable = { tags: ['diopsis:skip'] };    // never captured

A tag naming neither a width nor a configured set warns and falls back to the default widths. A typo should not quietly stop watching a story.

Excluding genuinely random pixels

Mark the element with data-diopsis-ignore — a map tile, a video, a canvas. That is the only ignore attribute Diopsis recognises.

Prefer deleting an annotation to renaming one. Because the clock is frozen, anything that existed only to hide a date or a changing year does not need to be masked at all. And a mask is weaker than it looks: it hides content from the reviewer, and it still fails the comparison when the masked element's own bounding box moves.

Everyday use

Verify — npx diopsis run. Exits non-zero when anything changed, so CI fails.

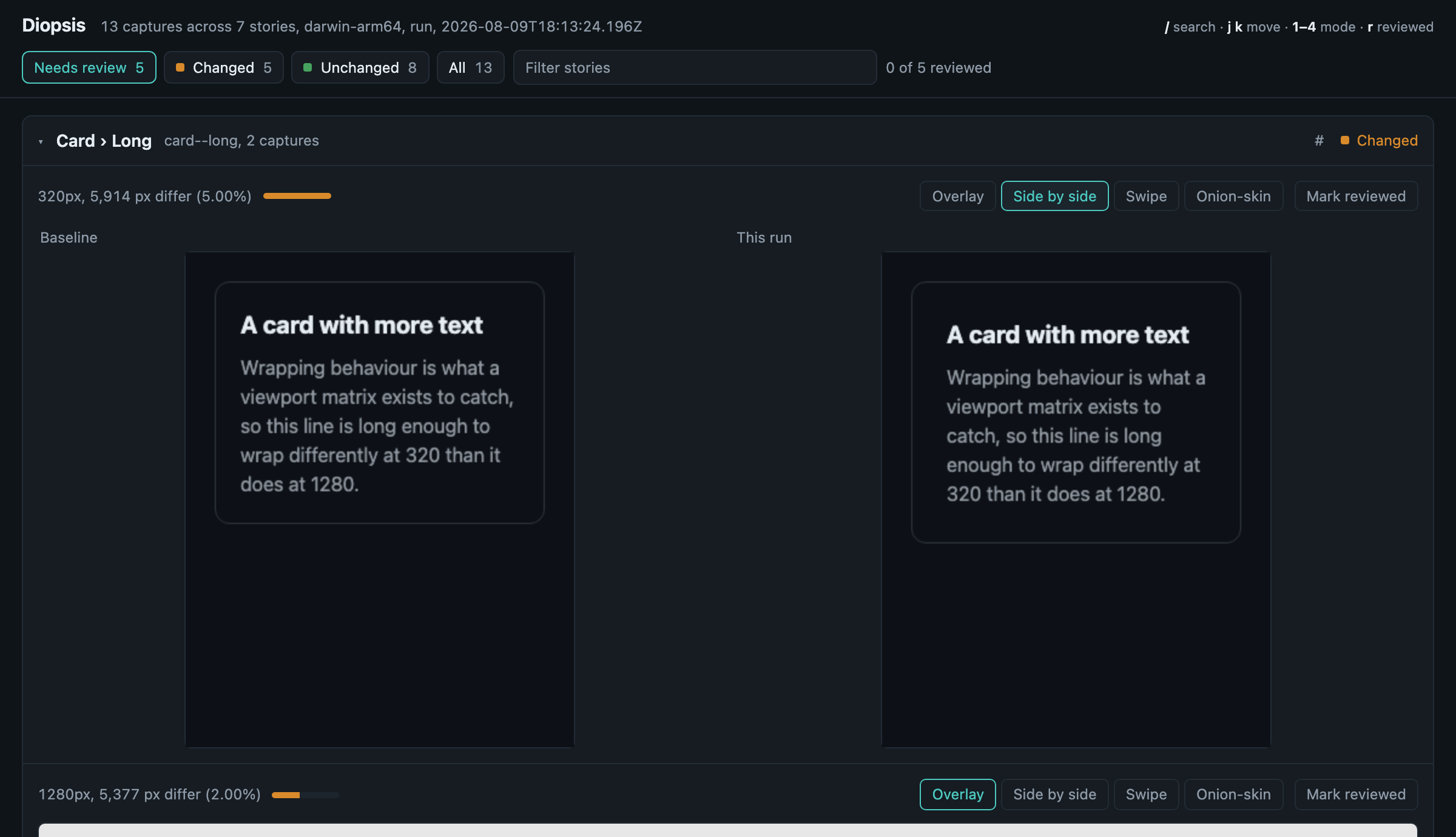

Review — npx diopsis report opens the last report, pictured at the top of this page. It is one self-contained HTML file, so it also opens straight from a CI artifact with nothing beside it, and it follows whichever theme your system is set to. Every capture offers the same pair four ways: diff-highlight overlay — the default, because it answers "what changed?" with no interaction — plus side-by-side, swipe, and onion-skin. Click a capture to stop fitting it to the page and see it at actual size, which is the only way a one-pixel shift survives being looked at. Unchanged stories stay collapsed, the largest change leads, and each changed story carries the exact command to accept it.

A few hundred captures are meant to be worked through rather than scrolled past, so the report filters by story, remembers which captures you have already ticked off, and gives every story its own link to paste into the review. From the keyboard: / filters, j and k move between captures, 1–4 switch how the pair is compared, and r ticks one off.

Accept — npx diopsis accept adopts the whole run, or npx diopsis accept card--default adopts one story. Both copy the new images over the baselines and stage them for review.

Regenerate — npx diopsis update rewrites baselines wholesale, for when you already know everything changed.

Add --grep <text> to any of these to limit the run to stories whose id contains <text>.

Reference

Command	What it does
diopsis init	Scaffold config, git settings and a CI recipe; print what the matrix costs
diopsis run	Verify against committed baselines (default command)
diopsis update	Regenerate baselines
diopsis accept [story-id]	Adopt the last run's output, per story or wholesale
diopsis report	Open the last report
diopsis doctor	Audit the setup

Flag	Applies to	Effect
--grep <text>	run, update	Only stories whose id contains <text>
--keep	run, update	Keep the generated Playwright project for inspection
--force	init	Overwrite an existing config
--lfs	init	Set the baselines up for Git LFS
--no-stage	accept	Write the files without staging them in git

Config key	Default	Meaning
storybookDir	storybook-static	The built Storybook to read
snapshotDir	__screenshots__	Where baselines are committed
viewports	{ default: [320, 1280] }	Named sets of widths; default applies to untagged stories
viewportHeight	900	Viewport height; captures are full-page
fullPage	true	Capture the whole scrollable page rather than the viewport
image	Playwright's Jammy image	The one image name baseline generation and CI must share
stabilize.freezeClock	2026-01-15T12:00:00Z	Fixed wall-clock time, or false
stabilize.waitForNetworkIdle	true	Wait for the network to settle
stabilize.disableAnimations	true	Zero out animations and transitions
stabilize.waitForFonts	true	Wait for document.fonts.ready
stabilize.waitForImages	true	Wait for every image to decode
stabilize.waitForLoadingStates	true	Wait for aria-busy and progressbars to clear
stabilize.settleTimeout	15000	Ceiling on the whole stabilization sequence, ms
mask	['[data-diopsis-ignore]']	Selectors painted over before comparison
compare.threshold	0.2	Per-pixel colour tolerance, 0–1
compare.maxDiffPixelRatio	0.001	Share of differing pixels tolerated
timeout	30000	Per-capture timeout, ms
workers	Playwright's default	Parallel workers
outputDir	.diopsis	Where the report and summary are written

diopsis doctor audits all of it:

$ npx diopsis doctor

Diopsis doctor

  · Baseline image is pinned
      mcr.microsoft.com/playwright:v1.62.1-jammy — the CI job must name this exact image.
  · 7 stories → 13 captures
      Widths default: 320, 1280
  · 13 baselines, 116 KB
      Every intentional change adds another set to history permanently — this figure only grows.
  · Every baseline carries a platform and architecture
      This machine writes darwin-arm64.
  · No orphaned baselines for this platform
  · Baselines are marked unmergeable in .gitattributes

Everything checks out.

It also reports baselines for stories that no longer exist, baselines missing a platform suffix, a .gitignore that excludes your baselines, and another tool's ignore attribute left behind by a migration.

Programmatic use

diopsis run exits 0 when every capture matched its baseline and 1 otherwise — a changed capture, a missing baseline, a story that failed to render, or nothing to capture at all. That single code is the whole CI contract; everything richer is in summary.json.

summary.json

Written beside the report on every run. This is the contract to build against — a PR bot, a dashboard, or an agent wiring Diopsis into something else reads this, not the terminal.

{
  "diopsis": 1,
  "createdAt": "2026-08-06T20:22:16.947Z",
  "platform": "darwin",
  "arch": "arm64",
  "mode": "run",
  "snapshotDir": "__screenshots__",
  "totals": {
    "stories": 7, "captures": 13,
    "unchanged": 8, "changed": 5, "new": 0, "renderFailed": 0, "failed": 0
  },
  "changedStories": ["card--default", "card--long", "card--wide-only"],
  "captures": [
    {
      "storyId": "card--default",
      "storyTitle": "Card",
      "storyName": "Default",
      "width": 320,
      "status": "changed",
      "snapshotPath": "card--default/320w-darwin-arm64.png",
      "diffPixels": 2684,
      "diffRatio": 0.03,
      "error": "Error: expect(page).toHaveScreenshot(expected) failed\n\n  2684 pixels ...",
      "artifacts": {
        "actual": "test-results/diopsis-card--default-320-chromium/card--default/320w-darwin-arm64-actual.png",
        "diff": "test-results/diopsis-card--default-320-chromium/card--default/320w-darwin-arm64-diff.png",
        "expected": "../__screenshots__/card--default/320w-darwin-arm64.png"
      }
    },
    {
      "storyId": "nondeterminism--animation",
      "storyTitle": "Nondeterminism",
      "storyName": "Animation",
      "width": 320,
      "status": "unchanged",
      "snapshotPath": "nondeterminism--animation/320w-darwin-arm64.png",
      "artifacts": {
        "expected": "../__screenshots__/nondeterminism--animation/320w-darwin-arm64.png"
      }
    }
  ]
}

Field	Type	Notes
diopsis	1	Format version. Bumped only on a breaking change to this shape
createdAt	ISO-8601 string	When the run started
platform / arch	string	The process.platform and process.arch that produced the run — the same pair in every snapshotPath
mode	"run" | "update"	Whether baselines were verified or regenerated
snapshotDir	string	The configured baseline directory, as written
totals	object	Counts per status, plus captures and the distinct stories behind them
changedStories	string[]	Story ids with at least one capture needing review, sorted. Usually all a bot needs
captures	object[]	Every capture the run planned, in plan order — not only the interesting ones

Per capture: status is one of unchanged, changed, new, render-failed, failed. diffPixels and diffRatio appear only when the comparator reported them, error only when something failed, and artifacts holds whichever of expected, actual and diff exist, as paths relative to outputDir so a run stays portable when the directory is moved or downloaded from CI.

Two things are deliberate. captures lists the full set rather than only the changed ones, so a consumer can diff one run's coverage against another's. And status is not Playwright's pass/fail: "a baseline did not exist yet" and "this looks different" both present as a failing test and call for opposite responses, so they are separate states here.

Troubleshooting

Every capture fails the first time you run in CI. Your baselines were generated on a different operating system. Screenshots are OS-specific; generate them in the image your CI job uses. diopsis doctor prints which platforms your baseline sets were built on.

Baselines match locally on an Apple Silicon Mac but differ slightly in CI. arm64 and amd64 renders are not identical (playwright#13873). A container on an ARM host gets you close, not exact. Generate the authoritative set on the same architecture CI runs, and treat compare.maxDiffPixelRatio as the lever if a genuine parity gap remains.

Cannot read diopsis.config.ts on Node <version>. A TypeScript config is loaded by Node's own type stripping, which needs Node 22.18 or newer. Upgrade Node, or rename the file to diopsis.config.mjs and delete the type annotations.

Cannot find @playwright/test. It is a peer dependency and is not installed for you: npm install --save-dev @playwright/test, then npx playwright install chromium.

No story index in storybook-static. storybookDir is not pointing at a Storybook build. It must be the output directory of storybook build, containing index.json and iframe.html.

A story is captured mid-skeleton. Stabilization waits for aria-busy, progressbars, fonts and images. A custom loading state with none of those markers is invisible to it — put aria-busy="true" on the container while it loads.

Roadmap

What's next lives in ROADMAP.md; every design decision, and what was deliberately ruled out, is recorded in DECISIONS.md.

License

MIT
