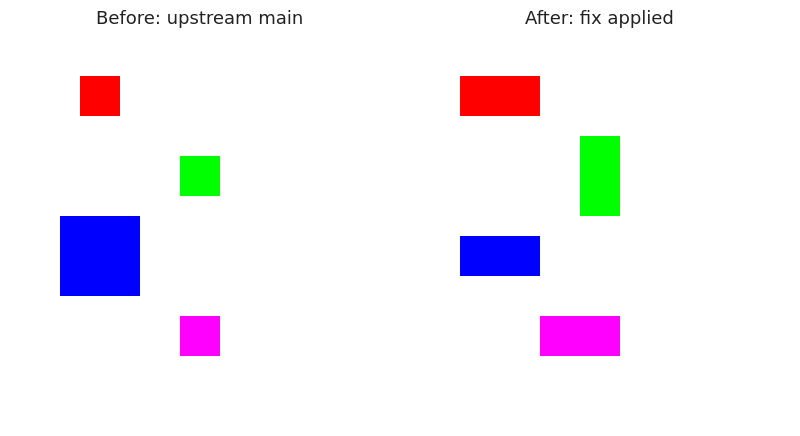

Markers with a viewBox whose aspect ratio differs from the marker viewport are clipped to the viewBox, cropping valid artwork with meet and allowing artwork outside the viewport with slice.
Transform the marker viewport rectangle into content coordinates before constructing its clip path, so clipping follows the viewport for meet, slice, alignment, and stroke-width scaling. A new pixel regression checks these cases at 1x and 2x scale, and the existing marker golden is updated after comparison with Chrome; the full workspace tests, formatting, copyright check, and no-default-feature checks pass.
Download the SVG reproducer
