Improve text-path positioning accuracy - #1166
Open
Cees-Kettenis wants to merge 2 commits into
Open
Cees-Kettenis wants to merge 2 commits into
Cees-Kettenis wants to merge 2 commits into
Conversation
added 2 commits
October 16, 2026 19:30

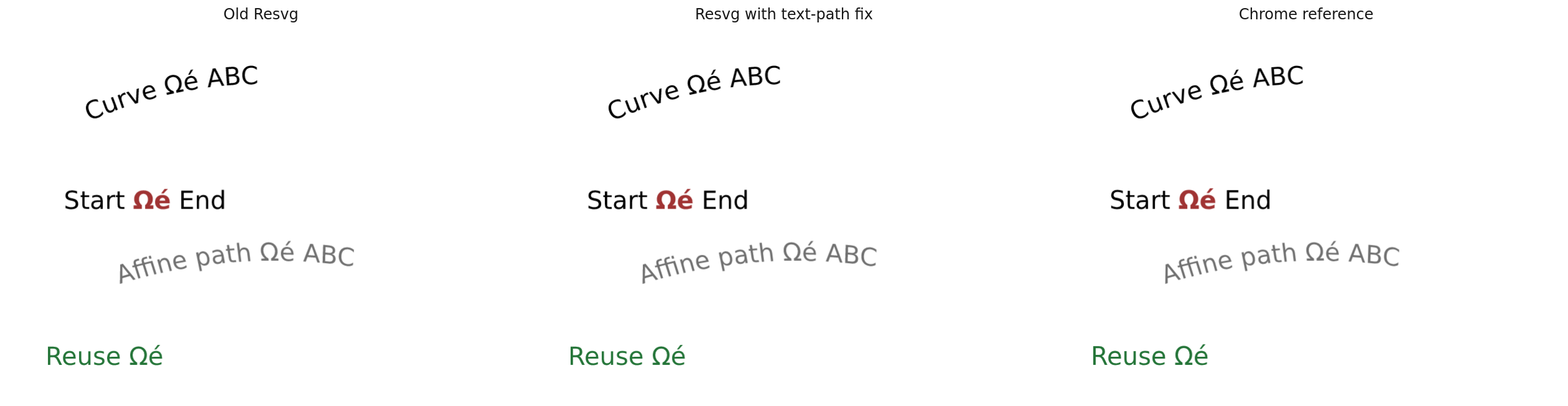

Compare all 42 affected fixtures against a 0.000001 accuracy control before updating the expected PNGs. The same 661 glyphs are retained; maximum glyph-origin deviation drops from 0.552105 to 0.001184 SVG units. Preserve the independent numeric regression for straight paths and collinear cubics.
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Text on a path can start roughly a quarter of a user unit away from its intended position because the arc-length solver uses a 0.5-unit tolerance.
Reduce the base arc-length accuracy to 0.001 while retaining the existing transform-scale adjustment, so both length estimation and inverse arc length place glyphs more accurately. Add a numeric regression for horizontal, vertical, and nonuniform collinear cubic paths.
