Depends on #8108. Review only this PR's change.

User need

What led here: we are bringing Astryx's touch components to iOS quality on the mobile web. iOS top-level screens use a large title that hands over to the bar's small title as you scroll, and the stacked search field (#8181) sits under it.

Problem and solution fit

NavigationScreen gains titleDisplayMode: 'large' | 'inline' (default inline). The large title sits inside the scroll container, so it scrolls 1:1 with the rows. Once it is under the bar, the bar's title fades in and rises 15 px on a measured spring; scrolling back reverses it. Pushes, pops and back swipes carry each large title with its screen. While the large title shows, the bar's copy is hidden from assistive technology, and a push focuses the large title.

Current specification

Proposed, for the owner's review. New measured constant: navigation.inlineTitleRise (15), with an [experimental] core changeset.

Public delta and caller burden

One optional prop; callers set large on top-level screens.

Design and alternatives

  • The handover reads the scroller's own passive scroll events, so scrolling stays the browser's.
  • Known gaps against UIKit: a release part-way through the collapse doesn't snap (that would need script-driven scrolling), and the bar keeps one height, because Mobile Safari 26.2 runs CSS scroll timelines on the main thread (measured: a frame behind, and frozen while the page is busy).

Evidence

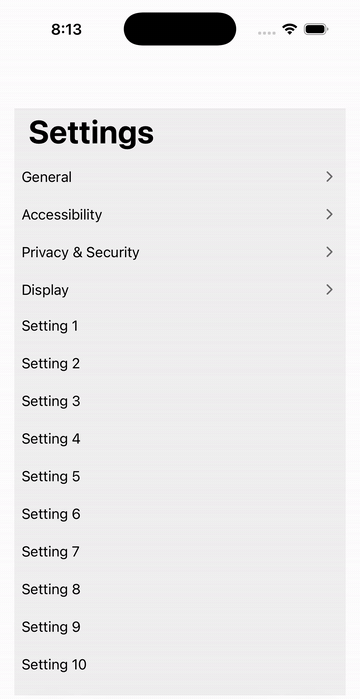

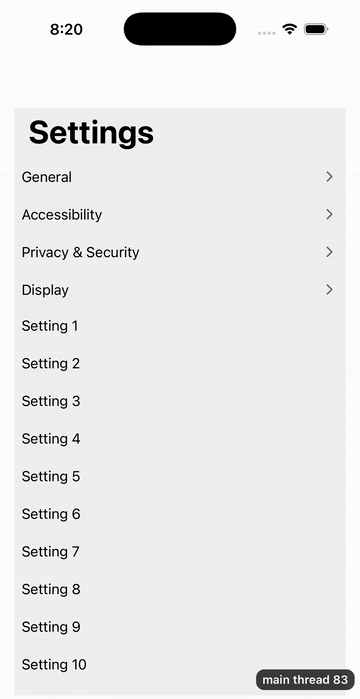

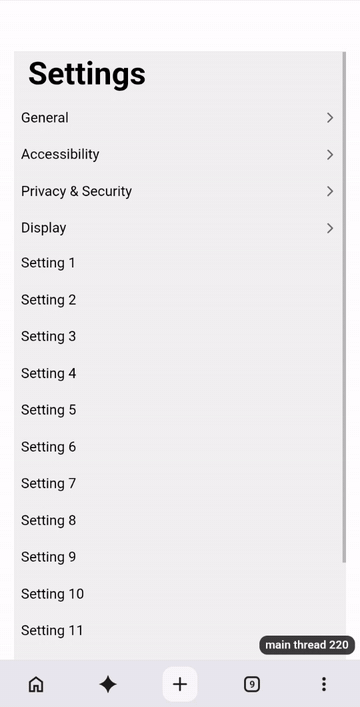

iOS 26.2 simulator: scroll hands over and back, push and pop, back swipe, a 600 ms block inside the handover. Chromium: Reduce Motion. Android 15 emulator: scroll.

Scope

  • One capability is added.
  • Unrelated fixes, cleanup, and policy changes were removed or split.
  • Consumer docs, focused tests, and migration evidence ship with the feature.
  • Public text and artifacts contain no internal Meta context.

Testing

In Chrome's device toolbar (a phone, touch), "Lab/NavigationStack › Large title":

  1. Scroll the list up: the large title scrolls away and the bar's title fades in, rising into place.
  2. Scroll back down: it hands back.
  3. Push a row, then swipe back: each large title rides with its own screen.

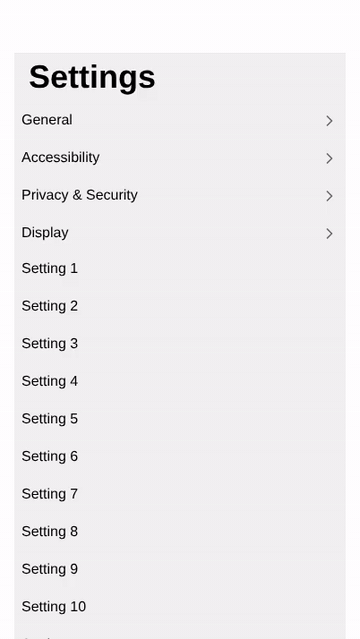

What I ran: the unit tests and the browser proofs (Chromium and WebKit) passed. Two review findings have tests that failed before their fixes: popping back two levels shows the large title without the bar's, and a large-title screen pushed again starts large. The busy handover proof counts frames at the screen recording's own pace, which a loaded CI machine slows.

This now sits directly on #8108: #8114 closed after Cindy decided a row's selection is the product's call through isSelected, and its change and #8082's left this branch. Recorded on the iOS 26.2 simulator and the Android 15 emulator; a real-device check is the release gate. Includes #8562 (Core's internal entry points); if those land differently, this follows.

@vercel

vercel Bot commented Oct 24, 2026 •

Copy link
Copy Markdown

The latest updates on your projects. Learn more about Vercel for GitHub.

Project Deployment Actions Updated
astryx Ready Ready Preview Oct 29, 2026 10:57pm UTC

Request Review

@astracat-bot

astracat-bot Bot commented Oct 24, 2026 •

Copy link
Copy Markdown

AI review status for this pull request.

Review status Updated
❓ Needs maintainer input (for maintainers only) Oct 29, 2026, 11:17 PM UTC

@meta-cla meta-cla Bot added the CLA Signed This label is managed by the Meta Open Source bot. label Oct 24, 2026

@astracat-bot astracat-bot Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This stack needs an engineering owner's decision before it can be approved: no current spec governs NavigationStack's large titles, and the draft spec:AST-094 it carries, including its proposed changes to the current theme-tokens, interaction-modality, buttons, user-states and AST-025 records, has no owner approval. An engineering owner can record that decision by commenting /approve-spec <full head SHA> on this pull request, and the author may do so as an engineering owner. Independently of that decision, these need fixing:

  • The bar title shows at full opacity over a visible large title for about half a second when a scrolled large-title screen is pushed again and when popping back to a large-title root from two levels down, so clear a screen's collapsed flag when its card unmounts and ignore observer reports while a card is content-visibility: hidden.
  • After a pop that lands one or more levels deep, the screen underneath stays content-visibility: hidden with no bar because underKey keeps the finished pop's under, so a back swipe drags in an empty card.
  • The diff against main is about 29,000 authored lines from 28 commits, so land or drop the predecessor pull requests first and let this one become its own large-title change.

[Automated review]

{root: card, threshold: 0},
);
observer.observe(title);
return () => observer.disconnect();

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

When this card unmounts, its key stays in collapsedTitles, so pushing the same entry again renders the bar title at full opacity until the new observer reports (measured in Chromium: 1.00, fading to 0 over about 490 ms) — the flash react-component-runtime INV1 rules out. A newly mounted card starts at scroll 0, so dropping the key here fixes it, for example by also calling onLargeTitleCollapse(model.key, false) in this cleanup.

touchAction: 'pan-y pinch-zoom',
},
cardHidden: {
contentVisibility: 'hidden',

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

While a card is content-visibility: hidden, the large-title observer reports the title as not intersecting, so the root is marked collapsed while it is two levels down, and popping back to it shows the bar title over the large title for about half a second (measured: opacity 1.00 at the pop, 0.01 at about 480 ms). Ignoring observer entries while the card is hidden, and keeping the last value, avoids it.

Comment on lines +719 to +722
const underKey =
view.transition.kind !== 'none'
? view.transition.under
: (view.models.at(-2)?.key ?? null);

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

After a pop finishes, transition.under is the new top screen, so the screen actually underneath gets isHidden (content-visibility: hidden) and no bar layer. In the Settings story, depth 1 reached by popping back from About leaves the root's rows unrendered (checkVisibility() false), so the next back swipe drags in an empty card. Taking the under screen from view.models.at(-2) once the transition has finished fixes it.

@github-actions

github-actions Bot commented Oct 24, 2026 •

Copy link
Copy Markdown
Contributor

PR Analysis Report

📚 Storybook Preview

View Storybook for this PR

🧪 Sandbox Preview

View Sandbox for this PR

Component Size

Component Import before Import after Delta CSS before CSS after Delta
core/AlertDialog 56.9KB 57.2KB +303B 12.4KB 12.4KB 0B
core/AppShell 57.9KB 58.1KB +250B 11.6KB 11.6KB 0B
core/AvatarGroup 39.8KB 39.8KB +10B 6.4KB 6.4KB 0B
core/AvatarGroupOverflow 39.9KB 40.2KB +314B 6.4KB 6.4KB 0B
core/Banner 47.8KB 48.1KB +299B 9.9KB 9.9KB 0B
core/BaseTypeahead 54.3KB 54.6KB +252B 9.9KB 9.9KB 0B
core/BottomSheet 34.0KB 34.0KB 0B 7.9KB 7.9KB 0B
core/BottomSheetSwitcher 14.8KB 14.8KB 0B 3.3KB 3.3KB 0B
core/BreadcrumbItem 66.4KB 66.7KB +312B 11.0KB 11.0KB 0B
core/Button 43.3KB 43.6KB +283B 9.2KB 9.2KB 0B
core/ButtonGroup 8.4KB 8.4KB 0B 3.3KB 3.3KB 0B
core/Calendar 54.9KB 55.2KB +298B 10.0KB 10.0KB 0B
core/Carousel 50.2KB 50.5KB +327B 10.2KB 10.2KB 0B
core/ChatComposer 60.6KB 60.9KB +280B 10.8KB 10.8KB 0B
core/ChatComposerInput 55.7KB 56.0KB +275B 10.1KB 10.1KB 0B
core/ChatComposerTokenElement 55.7KB 56.0KB +275B 10.1KB 10.1KB 0B
core/ChatDictationButton 46.5KB 46.8KB +274B 9.5KB 9.5KB 0B
core/ChatLayout 48.8KB 49.1KB +284B 9.9KB 9.9KB 0B
core/ChatLayoutScrollButton 46.4KB 46.6KB +264B 9.6KB 9.6KB 0B
core/ChatSendButton 45.8KB 46.1KB +274B 9.2KB 9.2KB 0B
core/CheckboxInput 49.9KB 50.2KB +281B 9.3KB 9.3KB 0B
core/CheckboxList 46.0KB 46.0KB +9B 8.1KB 8.1KB 0B
core/CheckboxListItem 54.0KB 54.3KB +295B 10.5KB 10.5KB 0B
core/ClickableCard 12.8KB 13.1KB +289B 6.9KB 6.9KB 0B
core/CodeBlock 60.5KB 60.8KB +285B 10.7KB 10.7KB 0B
core/Collapsible 11.7KB 12.0KB +291B 4.2KB 4.2KB 0B
core/CommandPalette 50.9KB 51.2KB +292B 11.8KB 11.8KB 0B
core/CommandPaletteItem 8.4KB 8.7KB +280B 3.5KB 3.5KB 0B
core/ComplexSelector 55.8KB 56.1KB +328B 10.6KB 10.6KB 0B
core/ContextMenu 77.7KB 78.0KB +283B 14.6KB 14.6KB 0B
core/ContextMenuItem 16.6KB 16.8KB +281B 5.2KB 5.2KB 0B
core/DateInput 99.9KB 100.1KB +252B 14.8KB 14.8KB 0B
core/DateRangeInput 69.4KB 69.6KB +276B 11.2KB 11.2KB 0B
core/DateTimeInput 110.1KB 110.3KB +258B 15.2KB 15.2KB 0B
core/DialogHeader 48.8KB 49.1KB +289B 9.8KB 9.8KB 0B
core/Drawer 31.6KB 31.6KB -2B 8.0KB 8.0KB 0B
core/DrawerHeader 48.9KB 49.2KB +259B 11.2KB 11.2KB 0B
core/DropdownMenu 72.7KB 73.0KB +288B 14.7KB 14.7KB 0B
core/DropdownMenuCheckboxItem 16.1KB 16.4KB +284B 5.6KB 5.6KB 0B
core/DropdownMenuItem 15.4KB 15.7KB +287B 5.2KB 5.2KB 0B
core/DropdownMenuRadioItem 16.2KB 16.5KB +275B 5.6KB 5.6KB 0B
core/DropdownMenuSubMenu 58.1KB 58.4KB +278B 9.5KB 9.5KB 0B
core/Field 44.2KB 44.2KB +11B 8.0KB 8.0KB 0B
core/FieldLabel 39.8KB 39.8KB +10B 6.5KB 6.5KB 0B
core/FileInput 54.1KB 54.4KB +272B 10.3KB 10.3KB 0B
core/IconButton 43.3KB 43.6KB +282B 9.2KB 9.2KB 0B
core/InputGroup 44.8KB 44.8KB +9B 8.0KB 8.0KB 0B
core/Item 11.4KB 11.6KB +273B 4.7KB 4.7KB 0B
core/LayerProvider 63.3KB 63.6KB +295B 10.1KB 10.1KB 0B
core/Lightbox 51.2KB 51.4KB +258B 9.8KB 9.8KB 0B
core/Link 43.5KB 43.8KB +297B 7.6KB 7.6KB 0B
core/ListItem 53.5KB 53.8KB +322B 10.5KB 10.5KB 0B
core/Markdown 144.5KB 144.7KB +257B 17.4KB 17.4KB 0B
core/MobileNav 51.0KB 51.3KB +272B 10.1KB 10.1KB 0B
core/MobileNavToggle 46.2KB 46.5KB +269B 9.4KB 9.4KB 0B
core/MoreMenu 72.9KB 73.2KB +289B 14.7KB 14.7KB 0B
core/MultiSelector 76.2KB 76.4KB +265B 14.6KB 14.6KB 0B
core/NavHeadingMenu 8.9KB 8.9KB 0B 3.2KB 3.2KB 0B
core/NumberInput 55.7KB 56.0KB +288B 10.7KB 10.7KB 0B
core/Outline 28.6KB 28.9KB +300B 4.0KB 4.0KB 0B
core/Pagination 87.7KB 88.0KB +272B 15.3KB 15.3KB 0B
core/Popover 49.8KB 50.1KB +246B 12.1KB 12.1KB 0B
core/PowerSearch 155.1KB 155.3KB +275B 18.6KB 18.6KB 0B
core/RadioList 45.6KB 45.6KB +9B 8.0KB 8.0KB 0B
core/RadioListItem 52.1KB 52.5KB +336B 9.7KB 9.7KB 0B
core/SegmentedControl 38.8KB 38.8KB +11B 6.3KB 6.3KB 0B
core/SegmentedControlItem 8.6KB 8.9KB +285B 3.9KB 3.9KB 0B
core/SelectableCard 12.8KB 13.1KB +294B 7.1KB 7.1KB 0B
core/Selector 79.1KB 79.4KB +294B 15.0KB 15.0KB 0B
core/SelectorOption 14.5KB 14.8KB +251B 5.1KB 5.1KB 0B
core/SideNav 58.0KB 58.3KB +275B 10.6KB 10.6KB 0B
core/SideNavCollapseButton 46.6KB 46.9KB +251B 9.5KB 9.5KB 0B
core/SideNavHeading 54.7KB 55.0KB +258B 10.1KB 10.1KB 0B
core/SideNavItem 54.5KB 54.8KB +276B 10.1KB 10.1KB 0B
core/Slider 48.5KB 48.5KB +10B 8.5KB 8.5KB 0B
core/Step 32.4KB 32.7KB +289B 5.3KB 5.3KB 0B
core/Stepper 47.4KB 47.7KB +274B 9.6KB 9.6KB 0B
core/Switch 48.4KB 48.7KB +294B 9.3KB 9.3KB 0B
core/Tab 9.7KB 10.0KB +294B 4.1KB 4.1KB 0B
core/TabList 40.2KB 40.2KB +12B 7.2KB 7.2KB 0B
core/TabMenu 51.6KB 51.9KB +284B 10.0KB 10.0KB 0B
core/Table 84.0KB 84.2KB +261B 15.1KB 15.1KB 0B
core/TableCell 78.8KB 79.1KB +277B 14.8KB 14.8KB 0B
core/TableHeaderCell 78.6KB 78.9KB +282B 14.8KB 14.8KB 0B
core/TableSelectionToolbar 52.4KB 52.6KB +286B 11.2KB 11.2KB 0B
core/TextArea 49.4KB 49.4KB +13B 9.4KB 9.4KB 0B
core/TextInput 53.5KB 53.8KB +291B 10.5KB 10.5KB 0B
core/Thumbnail 50.7KB 50.9KB +283B 11.0KB 11.0KB 0B
core/TimeInput 86.8KB 87.1KB +280B 13.8KB 13.8KB 0B
core/Timestamp 27.5KB 27.5KB +11B 9.5KB 9.5KB 0B
core/Toast 59.8KB 60.1KB +267B 9.7KB 9.7KB 0B
core/ToggleButton 44.1KB 44.4KB +252B 9.3KB 9.3KB 0B
core/Token 29.6KB 29.9KB +298B 4.5KB 4.5KB 0B
core/Tokenizer 64.8KB 65.1KB +316B 11.7KB 11.7KB 0B
core/Toolbar 39.8KB 39.8KB +12B 7.7KB 7.7KB 0B
core/TopNav 51.9KB 52.1KB +287B 10.4KB 10.4KB 0B
core/TopNavHeading 54.2KB 54.4KB +241B 9.9KB 9.9KB 0B
core/TopNavItem 9.0KB 9.3KB +283B 3.8KB 3.8KB 0B
core/TopNavMegaMenu 54.2KB 54.5KB +278B 10.8KB 10.8KB 0B
core/TopNavMegaMenuItem 9.1KB 9.4KB +281B 4.1KB 4.1KB 0B
core/TopNavMenu 53.6KB 53.9KB +268B 10.1KB 10.1KB 0B
core/TreeList 32.5KB 32.8KB +284B 4.7KB 4.7KB 0B
core/Typeahead 61.5KB 61.7KB +277B 11.3KB 11.3KB 0B
lab/NavigationScreen N/A 58.2KB N/A N/A 1.0KB N/A
lab/NavigationStack N/A 58.2KB N/A N/A 1.0KB N/A

Sizes are gzip. Import counts the JavaScript the import loads eagerly; CSS counts the package stylesheet rules referenced by the modules it can load from its own package, lazily loaded ones included.

Bundle Size Summary

Gzip figures measure each package's entry file, not the code an import pulls in.

Package Entry (ESM) Entry gzip before Entry gzip after Delta
@astryxdesign/core 4.9KB 1.2KB 1.2KB 0B
@astryxdesign/lab 4.8KB 1.9KB 2.0KB +73B
Package stylesheet Gzip before Gzip after Delta
@astryxdesign/core 34.6KB 34.6KB 0B
@astryxdesign/lab 11.1KB 11.3KB +193B

Accessibility Audit

Status: No accessibility violations detected.

Visual Regression

55 of 502 shot(s) changed.

A change here is a question, not a failure: check whether the after is the
picture you intended. Record that review on the PR. Baseline maintenance is an
explicit dispatch of CI; this report never rewrites the baseline or adds a release gate.

component story theme mode pixels
Selector Indicator Space Bottom Sheet Narrow End RTL neutral light 753,933
Selector Indicator Space Bottom Sheet Wide Start neutral light 740,072
RichTextEditor Markdown parity: side by side probe dark 558,840
RichTextEditor Markdown parity: side by side probe light 540,756
Chat Full AI Chat probe light 230,823
Chat Full AI Chat probe dark 229,805
AppShell With Mobile Nav probe light 217,010
AppShell With Mobile Nav probe dark 216,960
Collapsible Dividers probe dark 66,445
Collapsible Dividers probe light 66,445
AppShell Playground neutral dark 65,198
AppShell Playground neutral light 63,788
Chat Default neutral dark 36,304
Chat Default neutral light 35,767
Chat Empty State probe light 23,531
Chat Empty State probe dark 22,622
ChatAutoScroll Scroll Behavior Comparison neutral dark 15,378
ChatAutoScroll Scroll Behavior Comparison neutral light 14,107
Chat With Attachments probe light 13,406
Chat With Attachments probe dark 11,232

and 35 more.


Generated by PR Enrichment workflow | Storybook | Sandbox | View full report

@astracat-bot astracat-bot Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This stack needs an engineering owner's decision before it can be approved: no current spec governs NavigationStack's large titles, and the draft spec:AST-094 it carries, including its proposed changes to the current theme-tokens, interaction-modality, buttons, user-states and AST-025 records, has no owner approval. An engineering owner can record that decision by commenting /approve-spec <full head SHA> on this pull request, and the author may do so as an engineering owner. Independently of that decision, these still need fixing:

  • The bar title shows at full opacity over a visible large title for about half a second when a scrolled large-title screen is pushed again and when Done returns to a large-title root from two levels down, so clear a screen's collapsed flag when its card unmounts and ignore observer reports while a card is content-visibility: hidden.
  • After a pop that lands one or more levels deep, the screen underneath stays content-visibility: hidden with no bar because underKey keeps the finished pop's under, so a back swipe drags in an empty card.
  • The diff against main is about 29,000 authored lines from 29 commits, so land or drop the predecessor pull requests first and let this one become its own large-title change.

[Automated review]

follows.
- **FR7 — Exits animate as UIKit's do.** A touch presentation MUST play the
exit its UIKit counterpart plays. **Proposed; pending owner review:** this
departs from the draft `spec:AST-090` FR1 (exits off by default) and FR10

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

FR7 says it departs from the draft spec:AST-090 FR1 and FR10, but no AST-090 record exists in docs/specs at this head or on main, so an owner ruling on FR7 cannot read the rule it overrides. Cite the pull request that adds it, or drop the clause until it lands (the same reference recurs in Current-state impact).

Comment on lines +471 to +474
// The bar's title is hidden while the screen's large title shows, and
// fades in when the large title has scrolled under the bar.
const wasShownRef = useRef<boolean | null>(null);
useLayoutEffect(() => {

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This new layout effect drives the compositor animator, but the comment only describes the outcome; react-component-runtime INV3 asks a new Effect to name the external system it synchronizes. Naming the animator it drives would cover it.

@astracat-bot astracat-bot Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This stack needs an engineering owner's decision before it can be approved: no current spec governs NavigationStack's large titles, the draft spec:AST-094 it carries (including its proposed changes to the current theme-tokens, interaction-modality, buttons, user-states and AST-025 records) has no owner approval, and the new theme motion roles go beyond what the current AST-012 and theme-tokens records allow. An engineering owner can record that decision by commenting /approve-spec <full head SHA> on this pull request, and the author may do so as an engineering owner. Independently of that decision, these still need fixing:

  • The bar title shows at full opacity over a visible large title for about half a second when Done returns to a large-title root and when a scrolled large-title screen is pushed again, so clear a screen's collapsed flag when its card unmounts and ignore observer reports while a card is content-visibility: hidden.
  • The platform adaptation condition needs an amendment to AST-012 FR2's closed condition vocabulary, and AST-094 FR4, FR13 and DEC-1 need to describe the motion roles and the iOS idiom the stack ships, or the roles need to go.
  • After a pop that lands one or more levels deep, the screen underneath stays hidden with no bar, so a back swipe from there drags in an empty card.
  • The diff against main is about 31,700 lines from 34 commits, so land or drop the predecessor pull requests first and let this one become its own large-title change.

[Automated review]

{root: card, threshold: 0},
);
observer.observe(title);
return () => observer.disconnect();

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

When this card unmounts its key stays in collapsedTitles, so pushing the same entry again mounts its bar with isLargeTitleShown false and the first-render set shows the bar title at full opacity over the visible large title until the new observer reports (react-component-runtime INV1). Clearing the flag here (onLargeTitleCollapse(model.key, false)) would fix it, since a newly mounted card starts at scroll 0.

return undefined;
}
const observer = new IntersectionObserver(
([entry]) => onLargeTitleCollapse(model.key, !entry.isIntersecting),

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

While a card is content-visibility: hidden (two levels down), this observer reports the title as not intersecting, so the root is marked collapsed; Done on About then remounts the root's bar with its title at opacity 1 over the large title. Ignoring entries while the card is hidden and keeping the last value would avoid the flash.

: (view.models.at(-1)?.key ?? 'root');
const underKey =
view.transition.kind !== 'none'
? view.transition.under

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

After a pop finishes, transition.kind stays 'pop' and transition.under is the new top screen, so the screen actually underneath is isHidden with no bar layer; an iOS back swipe from there drags in a card whose content is skipped. Taking view.models.at(-2) once the transition has finished would fix it.

* is everything else. Pair `ios` with `pointer: 'coarse'` for a touch
* profile, such as touch motion tuned per platform.
*/
platform?: 'ios' | 'other';

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

spec:AST-012 FR2 lists width, pointer, contrast and motion and says "Future environment fields require explicit additions to this closed vocabulary"; this adds platform without that amendment. Carry the FR2 amendment for owner approval with the change, or drop the condition from this stack.

measures (0.55 for a scroll view and a sheet), and a release MUST pick its
rest point by projecting its velocity the way its UIKit counterpart does:
with a deceleration rate, or with a measured projection time.
- **FR4 — Physics are not themable in touch presentations.** A touch

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

FR4 (and DEC-1's rejected option) says touch physics are not themable, but this stack lets every theme retune touch springs, durations and curves through defineTheme({motion}), and its touch-presentation resolver defines the theme's duration and easing tokens for touch outside the iOS idiom. An owner approving this record would approve a contract the code breaks; amend FR4, FR13 and DEC-1 or drop the motion roles.

@astracat-bot astracat-bot Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This stack needs an engineering owner's decision before it can be approved: no current spec governs NavigationStack's large titles, the draft spec:AST-094 it carries (including its proposed changes to the current theme-tokens, interaction-modality, buttons, user-states and AST-025 records) has no owner approval, and the new theme motion roles and platform condition go beyond what the current AST-012 and theme-tokens records allow. An engineering owner can record that decision by commenting /approve-spec <full head SHA> on this pull request, and the author may do so as an engineering owner. Independently of that decision, these still need fixing:

  • The bar title shows at full opacity over a visible large title for about half a second when a scrolled large-title screen is pushed again and when Done returns to a large-title root, so clear a screen's collapsed flag when its card unmounts and ignore observer reports while a card is content-visibility: hidden.
  • The platform adaptation condition needs an amendment to AST-012 FR2's closed condition vocabulary, and AST-094 FR4, FR13 and DEC-1 need to describe the motion roles and the iOS idiom the stack ships, or the roles need to go.
  • After a pop that lands one or more levels deep, the screen underneath stays hidden with no bar, so a back swipe from there drags in an empty card.
  • The diff against main is about 31,700 lines from 34 commits, so land or drop the predecessor pull requests first and let this one become its own large-title change.

[Automated review]

vjeux added a commit to vjeux/astryx that referenced this pull request Oct 25, 2026
…corded on the restacked heads (iOS 26.2 simulator, Chromium, Android emulator with Chromium 158)
@vjeux
vjeux force-pushed the uikit/c14-navigation-large-titles branch from 8f7b3c5 to c8885c3 Compare October 25, 2026 04:40
@github-actions github-actions Bot added the needs:design-review Affects visuals — Design should review label Oct 25, 2026

@astracat-bot astracat-bot Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This stack needs an engineering owner's decision before it can be approved: no current spec governs NavigationStack's large titles, the draft spec:AST-094 it carries (including its proposed changes to the current theme-tokens, interaction-modality, buttons, user-states and AST-025 records) has no owner approval, and the new defineTheme motion roles go beyond what the current theme-tokens record allows and what AST-094's own FR4 says. An engineering owner can record that decision by commenting /approve-spec <full head SHA> on this pull request, and the author may do so as an engineering owner. Independently of that decision, these still need fixing:

  • Done back to a scrolled large-title root brings it back scrolled 17 px less, with its bar title fading in from transparent, because the card's scroll listener also runs while the card is content-visibility: hidden; skip it while hidden and keep the scroll offset.
  • The back swipe averages its last three velocities and keeps them through a still pause, while AST-100 FR2 requires the one tracker's release velocity, which is 0 after a still pause.
  • The row press layer's ::before applies on every pointer and hides callers' xstyle ::before decorations for mouse users, which AST-017 FR59 rules out for touch work; scope it to a coarse pointer.
  • The diff against main is about 42,700 authored lines from 119 commits, so land or drop the predecessor pull requests first and let this one become its own large-title change.

[Automated review]

Comment on lines +404 to +411
const read = () =>
onLargeTitleCollapse(
model.key,
title.offsetHeight > 0 &&
card.scrollTop >= title.offsetTop + title.offsetHeight,
);
read();
card.addEventListener('scroll', read, {passive: true});

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This read also runs while the card is content-visibility: hidden two levels down, where Chromium reports scrollTop 0, so a scrolled root loses its collapse while hidden: Done back to a root scrolled 80 px returns it at 63 px, with its bar title starting transparent and under half opacity for 11 frames (react-component-runtime INV1). Skipping read while the card is hidden (an isHidden ref) and keeping the card's scroll offset across hiding would fix it.

Comment on lines +172 to +182
// UIKit's release velocity: the mean of the pan's last three
// velocities, the lift's own update included. A pause keeps it.
let v = 0;
if (recognizer.state === 'ended') {
swipe.velocities.push(
popVelocity(recognizer.velocity().x, width, direction),
);
const recent = swipe.velocities.slice(
-navigation.interactivePopVelocitySamples,
);
v = recent.reduce((sum, value) => sum + value, 0) / recent.length;

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

spec:AST-100 (current) names a navigation pop as a dragged surface and requires its release velocity to be the tracker's, 0 after a still pause, with no second estimate (FR2, FR3). Averaging the last three velocities keeps the speed through a pause, so a held swipe can still finish the pop; comparing recognizer.velocity().x at the lift would conform, or AST-100 needs an approved amendment for UIKit's averaging.

Comment on lines +400 to +414
'::before': {
content: '""',
position: 'absolute',
inset: 0,
zIndex: -1,
borderRadius: 'inherit',
pointerEvents: 'none',
backgroundColor: colorVars['--color-overlay-pressed'],
// On at once while the press is believed, and while a selection hold
// keeps the row selected (its own animations move it from there);
// nothing transitions it.
opacity: {
default: 0,
[ENABLED]: {default: null, [PRESSED_ON]: 1, [PRESSED_HELD]: 1},
},

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

These ::before declarations apply on every pointer, so an interactive row's own xstyle ::before is hidden at rest for mouse users too. AST-017 FR59 (current) lets touch work change fine-pointer behavior only to fix a fine-pointer defect or for named cross-device consistency, with before-and-after evidence; scoping them to COARSE would leave fine-pointer rows as they were.

vjeux added 27 commits October 28, 2026 11:33
…s, and the action-group tracker writes its own

The header and writePress called it the one writer of the press attribute,
but main's action-group tracker writes its groups' presses itself. They now
say what holds, as meta#8076's gestures README does.
…he press attribute

The release note said every press painter writes data-astryx-press
through one internal writer, but the action-group tracker
(hooks/actionGroupTracker.ts) writes its groups' presses itself, as the
gestures README and utils/pressFeedback.ts already say. The note now says
paintPress writes every press it tracks and the action-group tracker
writes its own.
…llowance under every primary pointer

The useMenuPress record's FR9 puts the trigger's held finger under
spec:AST-094 FR29 under every primary pointer (FR43), so a finger on a
touchscreen laptop may drift 13 pt before the open, as on a phone. The
trigger read (pointer: coarse) as its press started and took the long
press's 10 px where the pointer was fine. Three cases fail until it does
not: a 12 pt drift opens under a fine pointer too, a (12, 12) settle
opens there, and nothing reads a pointer query, the trigger's press
included.
…lowance under every primary pointer

The useMenuPress record's FR9 governs the trigger's held finger by
spec:AST-094 FR29 under every primary pointer (FR43). The trigger now
hands the long press FR29's 13 px drift allowance whatever the primary
pointer, so it no longer reads (pointer: coarse) as its press starts, and
the menus drop their coarsePointer import. ContextMenu keeps the long
press's own allowable movement. The changeset says the same.
Strict ESLint reported six unused bindings in files this pull request
carries: the host's HAPTIC_SWITCH_ATTRIBUTE import, two unused imports
in the pan's tests (scrollProbe, ScreenEdgePanGestureRecognizer), the
swipe test's drift, the presented-hit-testing test's gestures, and a
GestureHost test's before, which now asserts what it was read for: a
second finger's moves leave the pan where it was.
…eal angular speed

The release velocity of a rotation whose listener sets rotation = 0 on
each change, at 2 degrees every 16 ms, read 4.363 rad/s against the
2.182 rad/s of the same stream without a re-base: the test asserted only
more than 1.5. It now asserts the 2.18 rad/s (spec:AST-100 FR2), and
fails.
The rotation's velocity tracker samples the raw unwrapped angle, which
setting rotation does not move, so the setter's shift of the samples read
each re-base as extra turn and doubled the release velocity of a
listener that re-bases on every change. The setter no longer touches the
tracker.
…mates while it runs

The proof read the element's animations 230 ms in, after the dip had
ended, and asserted only that every animated key is opacity, which an
empty list passes: with the cross-fade removed from the plan (the move
still landing), the proof still passed. It now reads the keyframe keys
right after the call starts and asserts they include opacity and nothing
else; the same mutant fails it. Chromium and WebKit pass. (F1's in-flight
read from c648034.)
…roller, and its claimed moves are cancelled under pointer events

Two comparisons stop at the shadow boundary, each failing a case:
- once the host's listener on a recognizer's inner node has seen the
  finger, isFingerDownIn reads it as outside a light-DOM scroller around
  that root, so a scroll under it is not the finger's (FR20);
- under inputMode 'pointer-events', a claimed pan on a shadow host
  cancels none of its finger's moves over the inner content, since the
  finger's target is the inner node and its touches reach the host
  retargeted (FR19).
…the flat tree

isFingerDownIn and the pointer-events finger match compare with
containsAlongFlatTree, as the scroll watch already does: a finger on
content inside an open shadow root is down in the scroller around that
root, and its touches, retargeted to the shadow host, match its pointer
finger, so a claimed pan cancels its moves there (spec:AST-094 FR19,
FR20).
…achments asks, and only then

The host let the last attachment decide whether an element is an action
group (useGestureRecognizer always passes the option), and never
recomputed it at a detach: a plain attachment after the group's turned
the group off, and a group's attachment released left a recognizer that
never asked taking presses under a fine pointer. Fails until the host
counts the attachments that ask.
…ents asks

The host counts the attachments that pass actionGroup: true and keeps the
element a group while one remains, recomputed at each detach. An
attachment that passes false, as useGestureRecognizer does by default,
no longer turns a group off, and a group's last asking attachment taking
its leave ends the group.
… that content

The presented hit test takes the document's elementFromPoint, which
answers a shadow host for anything inside its open root, and compares
with Node.contains, which stops at the boundary: a recognizer on a
control inside a moving sheet's shadow root gets no finger, and the tap's
click goes to the host. Fails until the hit test descends into open roots
and compares along the flat tree.
Where a moving element is drawn away from its layout box, the host
hit-tests what is drawn under the finger with the document's
elementFromPoint, which answers a shadow host for anything inside its
open root. The hit test now descends through each open root's own
elementFromPoint and compares with the movers along the flat tree, so a
recognizer on a control inside a moving sheet's shadow root gets its
finger and the tap clicks that control.
…nt lets go

The host's touch-action rules sit in an adopted sheet or a style element
per document or shadow root, and were never removed, so a page whose
last recognizer detached kept them, against spec:AST-094 FR24 (nothing
touch-related remains after the last instance unmounts). Fails until a
root's rules go with its last marked element.
…th its last marked element

The touch-action writer records which elements it marked in each
document or shadow root, and when the last one is unmarked (its last
recognizer detached) it removes that root's adopted sheet or style
element, so nothing touch-related remains after the last instance
unmounts (spec:AST-094 FR24). A later mark writes the rules again; an
element marked in another root first lets go of the old one.
… the inline style it reads

- The motion registry, the host's engine gate and the README name the
  presented hit test as an engine workaround (spec:AST-013 FR6) with its
  review condition (re-measure on each iOS release; remove it once iOS
  WebKit hit-tests a compositor-moved element where it is drawn) and its
  regression fixture.
- While a curve runs the animator holds the value it starts from inline,
  so presentation.ts and the README no longer say the inline style holds
  the end.
…core/internal/touch

Core ships the internal entry @astryxdesign/core/internal/touch, which
re-exports the gesture primitives for Astryx's own packages, and the
Lab-import guard fails a Lab import of core outside core's exports
(architecture:react-component-runtime INV13). The README and the barrel's
header named internal workspace imports and said nothing here is
exported; they now name that entry.
…ill needs the element, and the listeners that cancel

The release note, the stream's header, the host's comment and the README
said the stream is one passive listener per event type and that a
document-capture stopPropagation no longer starves the recognizers. Such a
stop never hid a listener on the same node, and some subscriptions cancel.
They now say what changed: an app's window-capture stopPropagation, or a
document-capture stopImmediatePropagation registered before core, no
longer hides a touch; a recognizer that must claim still needs the touch to
reach its element; the gesture host's touchend, click and contextmenu
cancel while a claimer is attached and the page hold's touchmove while it
holds; and the stream stays ahead of an app's window-capture listener only
until a type's listener is re-added. The README's list of blocking
touchmove listeners gains the claimed touch's target and the document
while a claiming element moves.
…default it moves

The {stylexOptions} form of astryxStylex now passes StyleX
treeshakeCompensation: true unless the caller sets it. spec:AST-017 FR3
asks the release note to name the old and new default and the option
that restores the old one; it now does.
…er and for the two stops the input stream fixes

- A still finger with sub-pixel jitter over a scroll view keeps its tap
  and scrolls nothing (spec:AST-094 FR18–FR22).
- A tap is still recognized under an app's window-capture
  stopPropagation, and under a document-capture
  stopImmediatePropagation registered before core's: the recognizers hear
  touches on the window's capture phase.
Chromium and WebKit pass.
…s once

Where nothing that claims is attached, the host's touchend listener is
passive and cannot cancel the engine's own click after a retargeted tap
clicks what is drawn. The shared click guard swallows that late click
whatever is attached; this case pins it, as asked on meta#8293.
…esture host's subscriptions

The gesture host subscribes no click: the one cancelling click subscriber
is the click guard's, added at a window's first arm and kept. The release
note, the stream's header and the gestures README listed click with the
host's touchend and contextmenu; they now name the guard's own.
meta#8360 now carries meta#8076 and meta#8320, which this branch took before.

@astracat-bot astracat-bot Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Approval needs an engineering owner to provide or identify the governing spec for two additions that have none: NavigationStack with its large titles in @astryxdesign/lab, and the new stable isRtlElement export from @astryxdesign/core/hooks. An engineering owner records that decision by commenting /approve-spec <full head SHA> on this pull request, and the author may do so as an engineering owner. Whatever that decision, these need changes:

  • A back swipe released while moving back can still pop (spec:AST-094 FR37), and its release velocity is a three-sample mean that survives a pause (spec:AST-100 FR2), which a browser test currently expects.
  • The gesture host and both back swipes stay off under a mouse, trackpad or pen, while spec:AST-094 FR19 and FR43 attach gestures for every pointer except the screen-edge pan.
  • A large-title screen observes its h1 instead of its content for overflow, so containment can outlive the overflow (spec:AST-025 FR14), and the isInteractivePopEnabled docs call the swipe iOS-only while it runs on any touch device.
  • paintPress and the held paint have no caller, and at 32,052 authored lines the diff should shrink to the 570-line large-title change once #8108 lands.

[Automated review]

* press controller: a group that tracks its selection, a row that keeps its
* selection through a navigation.
*/
export function paintPress(

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Nothing calls paintPress or readPressPaint at this head, and nothing writes or styles the held paint, yet every Core pressable loads this module. Remove them until the pull request that uses them, and correct .changeset/gesture-press-tracking.md, which says paintPress writes the attribute "for every press it tracks".

This branch was successfully deployed

1 active deployment
Preview — 49c99764 Deployed Oct 29, 2026 by vercel[bot]
Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment

Labels

CLA Signed This label is managed by the Meta Open Source bot. needs:design-review Affects visuals — Design should review

Projects

None yet

Development

Successfully merging this pull request may close these issues.

2 participants
