Adds internal/interaction-harness (@astryxdesign/interaction-harness) and playwright.interaction.config.ts: phone-sized touch projects in Chromium and WebKit for *.interaction.browser.spec.ts specs. Touch scripts are data (tap, drag with hold and rest, flick with an exact release velocity and velocity profiles, hold-then-drag, pinch, rotate, any path, a second finger mid-gesture), played as real engine input: CDP Input.dispatchTouchEvent with scripted timestamps in Chromium, WebKit's own input command in WebKit. The harness's self-test proves the timestamps, a native fling and multi-touch delivery; a pr-interaction CI job runs the proofs against each PR's Storybook build, and a container script runs the WebKit project where host libraries are missing.
Springs, scroll physics, timing curves, navigation values and gesture thresholds for the touch presentations of core components, each with its source (Apple documentation, a WWDC session, WebKit's UIKit-matched source, or a measurement of UIKit on the iOS 26.2 simulator) or labelled a guess with its measurement task. A test enforces the source rules on every domain file, in their JSDoc and typed forms, and checks the list of simulator measurements still owed.
Pure functions for the touch presentations: a closed-form damped spring with every Apple parameterization and Core Animation's settling duration, a spring chasing a moving target, UIScrollView's coast, rubber band and release projection. Tests hold them to an RK4 integration, WebKit's spring solver, the WWDC conversion equations and values read from UIKit, and play the constants table through them.
…rena An internal gesture system for touch presentations, not exported from the package. GestureRecognizer carries UIKit's states and allowed transitions, discrete and continuous recognizers, require-to-fail, simultaneous recognition on request, shouldBegin and shouldReceiveTouch, cancelsTouchesInView and the touch delays. GestureArena settles each touch sequence without the DOM: participants, resolution order, claims, delivery to the view, click dispositions (allow, suppress, defer and replay) and timers as deadlines on the event clock. Its rules are tested with scripted recognizers, independent of any real one.
…sholds Tap recognizes at the lift within 45 pt of movement, taps 0.35 s and 45 pt apart, and a 1.5 s hold; long press begins at exactly touch-down + 0.5 s on the event clock within 10 pt, even when the main thread was blocked, and a zero duration begins on the touch itself. The arena tests with these real recognizers cover tap against double tap, delegate requirements, deferred clicks and cancellation.
Touch behaviours key on a coarse primary pointer, layout behaviours on a compact viewport, and presentations that need both (a sheet in place of a popover) ask for both. utils/touchPresentation.ts holds the three queries, SSR-safe hooks (useTouchPresentation; useMotionPresentation for components with no interaction to infer from: UIKit motion under a finger, theme tokens under a mouse) and a one-moment read. Styles write the same queries as StyleX media keys, and a test keeps core's compact-touch keys spelled as the shared query. A compact viewport is narrower than 744 px or shorter than 500 px, the closest a size gets to UIKit's compact size class: an iPad mini in portrait keeps the anchored popover and a phone in landscape gets the sheet; a Max-size iPhone in landscape is the known miss. The adaptive popover-or- sheet presentation reads the shared query; its docs, stories and tests follow.
A file that reads only defineConsts values from a .stylex.ts module lost
that import under the legacy {stylexOptions} form Storybook uses: the
babel wrapper's StyleX instance ran without treeshakeCompensation (the
unplugin applies its Vite default only to its own instance, which runs
after the wrapper), so once stylex.create was compiled the TypeScript
transform dropped the import and the defining module never reached the
build. A constant used as a media-query key failed the build with
"Invalid empty selector"; one used as a value shipped as a custom
property nothing declares. The wrapper now gets treeshakeCompensation by
default.
The layer split also substituted constants only within each layer, so a
constant defined on the library side and read on the product side stayed
a placeholder in either form; every layer now sees every constant.
A production build now warns, naming the variable and the rule that reads
it, when the StyleX stylesheet reads a generated custom property nothing
declares; undefinedVariables: 'error' fails the build instead, and this
repo's Storybook and Sandbox configs set it so CI catches the next case.
Pure functions for the touch presentations: a closed-form damped spring with every Apple parameterization and Core Animation's settling duration, a spring chasing a moving target, UIScrollView's coast, rubber band and release projection. Tests hold them to an RK4 integration, WebKit's spring solver, the WWDC conversion equations and values read from UIKit, and play the constants table through them.
createAnimator plays springs and UIScrollView coasts as Web Animations keyframes on translate, rotate, scale and opacity, on one explicit clock, so they keep running while JavaScript is busy. Presentation values and velocities come from the curves, so a finger can catch any animation and a new target keeps the velocity; the end state is committed inline and held by the keyframes through a main-thread block, and a finished animation retires when its own time reaches the curve's end, so a sampler can pause it; Reduce Motion substitutes UIKit's cross-fade.
… Chromium The Chromium driver sent a lift of one finger of several as a touchMove listing the fingers still down, assuming CDP releases a point a move omits. It does not: the lifted finger stayed down. A touchEnd that lists the lifting fingers releases exactly those while the others keep moving, so the driver sends that, and a self-test lifts one of two fingers and checks the release, the other finger's moves and the touchend's remaining touches. Playwright's WebKit sends that touchend with no remaining touches, which iOS never does. The harness does not work around it: drivers expose partialLifts, and PARTIAL_LIFT_SKIP is the reason a proof cites when it skips; the README lists it with the other engine limits.
Pause every Web Animation, seek it to a time and read the presented transform and opacity, then compare the curve with oracles that share no code with the motion under test: cubic-bezier, the SwiftUI spring (response, dampingFraction, initial velocity), UIScrollView deceleration and UIKit's rubber band. Storyboards photograph seeked animations at t = 0, 16.7, 33.3 ... ms or each step of a scripted touch, and write a PNG contact sheet plus the JSON trace a spec asserts, under the gitignored test-results/interaction-evidence. A timer gate holds a component's own timers while a filmstrip is taken. pnpm storyboards runs the tagged tests.
…sented values An animation that keeps its end value in a run of identical final keyframes (held so a later interruption can read it) reported its whole duration as the curve: storyboards filmed the hold, waitForAnimation's interval reached past the landing, and waitForRest, which also required every animation to leave the running state and read only transform, timed out. The curve now ends where that run starts (HeldAnimation.curveEndMs, waitForAnimation's to, the default storyboard times), and rest is no animation pending or before its curve's end plus the presented transform, translate, rotate, scale and opacity (and ::backdrop opacity) still for 3 frames, whatever the playState. sampleCurve composes translate, rotate and scale with transform, so curves of the individual properties are sampled.
Timestamped composited frames (Chromium's screencast and WebKit's own), a marker the frames can find, and the busy-main-thread proof: block the page's main thread mid-flight and show the element still moving every frame, with a requestAnimationFrame animation that freezes as the negative control. Chromium trace counts of Layout, Paint and style work inside an animation window, and long tasks. The exemplar spec proves the BottomSheet drag to a detent with all of it: the drag follows the finger, a flick dismisses, the settle matches its timing function, keeps advancing through a blocked main thread in Chromium and WebKit, does no Layout or Paint, and gets a drag and settle storyboard.
…ed machine The proof asserted a stall under 40 ms and near-exact frame counts, so a dropped screencast frame or two on a loaded runner failed it, and frames delivered out of order read as the element stepping backwards. busyWindowProof now returns a verdict that tolerates what load does to a screencast and nothing a frozen animation does: a median frame interval of at most 20 ms, no stall longer than three screencast intervals, and at least 90% of the window's whole frame intervals presenting a new position (one miss always allowed), with the raw numbers in a summary. Screencast frames are sorted by presentation time, the cadence comes from the frames around the window, and blockMainThread can block from inside the page in the frame an animation has run, so a short settle is still judged at length on a busy machine. The exemplar judges its settle until it is within 2 px of rest, since the screencast rounds to whole pixels. A unit test covers the limits; the rAF negative control still fails every criterion.
The pan begins past 10 pt on either axis and leaves that travel out of its translation, as UIPanGestureRecognizer does; axis and one-way directions with axisRatio, axis lock, finger changes without jumps, scrollEdge, and an opt-in non-UIKit scrollHandoff. VelocityTracker defaults to UIKit's filter (0.2 x the newest event's velocity + 0.8 x the previous one's), which reproduces every value UIKit reported on recorded streams.
…zers The rest of UIKit's recognizer set on the gesture system: swipe recognized during the motion, pinch measured from the starting span moved by its hysteresis, unwrapped rotation, edge pans resolved against the writing direction that fail at touch-down outside their band, and hover for mice and hovering pens.
The touch-action an element gets from its recognizers (pinch-zoom stays unless a pinch or rotation recognizer is attached), what the scrollers under a touch could still do along the scroll chain, and UIKit's haptic feedback kinds on the web: navigator.vibrate where it exists, the switch tap haptic in iOS Safari.
…s takeover One host per document routes fingers (touch events, paired with their pointer events), mice and pens to the recognizers on the hit path. A recognizer that owns a touch cancels its touchmove through a non-passive listener; pointercancel, an uncancelable move or a scroll mean the browser took the touch; a claimed touch's touchend is cancelled and its click swallowed, a deferred click replayed when its recognizer fails. pointerIdOf names the pointer behind a tracked contact, so a held finger can be handed to code that follows pointers.
… and hooks PressTracker applies UIControl's events and its 70 pt tracking margin, the content-touch delay inside scrollers, the quick-tap flash and the scroll brake, with two profiles: control (UIButton) and cell (a row: delayed highlight everywhere, cancelled past the pan hysteresis, no flash). paintPress is the one writer of data-astryx-press and never clobbers a held row. installPressAttribute paints every marked surface with one tracker per touch, picks the profile from the marker's value and releases on its clock. useGestureRecognizer attaches a recognizer with a stable identity and no render per move.
The same touch scripts run in Chromium (CDP touches with timestamps) and WebKit (its own touch input): touch-action per element, claims over a scroller, no ghost click, scroll edge, pinch on its element only, a second finger, and a long press at exactly 500 ms under a blocked main thread. The README documents the system for component authors.
…tarts at the commit
play() bakes curves given as value and velocity functions of time (a spring
chasing a moving target, a fitted UIKit curve) like a spring.
createAnimator(dialog, {pseudoElement: '::backdrop'}) drives a
pseudo-element: a static filling animation holds its end value.
animatorFor(element) shares one animator per element, so callers animating
different axes compose in one translate track; atRest() waits out every
curve on its properties, and rebase() moves them by a layout shift keeping
their springs. A call from rest gets no start time, so the browser starts it
at its commit, as Core Animation does, and handle.started reports that
start. Every animation and set() promotes its channels to a compositing
layer in the same task (will-change, or a host custom property for a
pseudo-element) until 500 ms after the last motion: Mobile Safari only runs
a script-started curve through a block on an element that already has a
layer. Under Reduce Motion the substituted cross-fade can follow a
presentation's own spring, and crossfadeAs gives a slide that changes no
opacity its direction. The header lists the iOS Safari limits measured on
the simulator.
…eraction harness useAnimator wraps the animator for React without re-rendering per frame. Browser proofs on the interaction harness, in Chromium and WebKit on the phone profile: a spring keeps advancing on every screencast frame through a 1 s main-thread block and every frame sits on its analytic curve; a spring ending inside the block keeps its end state; no Layout or Paint runs while it animates; the engine plays the curve when seeked; a finished animation leaves within a frame or two of the curve's end; a dialog's ::backdrop follows the curve.
vjeux
requested review from
cixzhang,
imdreamrunner and
josephfarina
as code owners
October 24, 2026 10:37
|
The latest updates on your projects. Learn more about Vercel for GitHub.
|
meta-cla
Bot
added
the
CLA Signed
|
AI review status for this pull request.
|
…cription They ran under their own Playwright config, which no CI job picks up; spec:AST-030 FR11 asks new coverage to join its existing owner. Their results (Chromium and WebKit, and Mobile Safari on the iOS 26.2 simulator) stay in the pull request description, and the unit suites keep the resolver's answers.
Nothing pinned useMenuDrillIn's theme read: a fixed default query left the suites green. A 900 px coarse screen now flies the sub-menu out under the default md (768) and drills in under a theme whose md is 1000, as the root sheet does (spec:AST-012 FR9).
… reads Its default ignored a theme that moves md; nothing calls it yet, so the compact definition is now required and its first caller passes the theme's (useCompactDefinition()). The changeset names ContextMenu's sub-menus, whose drill-in changes too.
3 tasks done
Touch presentations get one native-feeling behavior by default on every touch device: measured values, compositor motion a finger can catch, recognizer-tracked gestures, two press profiles, a Reduce Motion cross-fade (design:reduced-motion), menus and popovers under a finger (FR26-FR35), and one release decision for every drag that commits (FR36-FR40). Touch motion is themeable through purpose-named roles; thresholds stay internal. useMenuPress, DropdownMenu, ContextMenu and Popover point to the new requirements. Retries meta#8316, whose review rounds were spent, carrying its last revision plus the review fixes: the record is current with its deciders named, FR34 follows DropdownMenu's drill-in (a parent-visible sub-menu is OQ10), the role list covers row swipes, Popover and sub-menus with purpose-led names, FR2 admits an owner decision as a source, and the quick-tap and longPressDelayMs wording is settled. Co-authored-by: vjeux <197597+vjeux@users.noreply.github.com>
8 tasks done
…l subpath The package no longer exports @astryxdesign/core/motion/experimental or @astryxdesign/core/gestures/experimental: a file path alone does not mark an API as experimental, and a public experimental API needs explicit marking in the API itself and its own spec decision. Core components import motion and gestures from ../motion and ../gestures, and Lab through internal workspace imports. Removes the two entry modules and their tests, their package.json and sync-exports entries, the hook docs whose import path was a removed subpath (useAnimator, useGestureRecognizer, usePressTracker, useTouchPresentation; already left out of search and the docsite), and the subpaths changeset. The READMEs and the gestures barrel say the modules are internal.
… into the touch foundation # Conflicts: # packages/core/src/utils/touchPresentation.ts
The animator and reducedMotionFade() read the person's settings (prefers-reduced-motion and a coarse primary pointer) and nothing else: the prefersReducedMotion and isCoarsePointer options are gone, so no caller can keep the motion or change which form it takes (design:reduced-motion DR4), and the experimental motion surface adds no Reduce Motion override. Tests set the settings through matchMedia. Co-authored-by: vjeux <197597+vjeux@users.noreply.github.com>
…hangesets say internal again The proposed ./motion/reducedMotion.stylex export goes: its constants carry no experimental marking and had no spec decision, and Reduce Motion stays internal (design:reduced-motion). Its Lab import test goes with it. With the experimental subpaths gone, the touch pieces' changesets say they are internal and not exported again, and search and the docsite no longer need to skip experimental hook docs.
A static import graph of core's source fails when anything imports a table as a namespace object (which keeps every table, register function and the role registry), when shared code imports a table that belongs to one component, or when a component reaches a component's table only through the uikit barrel or shared code. A made-up package proves each case fails.
![astracat-bot[bot]](https://avatars.githubusercontent.com/in/4796231?s=60&v=4){kind=small}
There was a problem hiding this comment.
Approval is on hold until an engineering owner rules on two Popover touch rules that no current spec states: that a touch-presented Popover closes when a pan starts outside it (its trigger included), and that a surface that fits takes touch-action: pinch-zoom; the spec:AST-094 that component:Popover now points to does not state either at this head (only #8316's FR32 does). An engineering owner records the decision by commenting /approve-spec 4a984aacb0178d70a4b2fe0e3fc627b0d16ab93f on this pull request, and the author may do so as an engineering owner; otherwise the change waits for #8316. Separately, these need changes:
- Once the predecessors land, rebase so the diff is this commit alone; as issued it carries 33,652 authored lines from #8076, #8186 and #8187.
- Land after #8316 so that
component:Popover's pointer reaches aspec:AST-094that states the pan dismissal. - In the stack, reconcile
spec:AST-094FR4 and the theme-roles changeset with the theme-retunable touch springs, and build the compact query from the theme's ownmdpoint (spec:AST-012FR9).
[Automated review]
Comment on lines
+326
to
+328
| entrance. It also owns the dismissal of a light-dismiss popover by a pan that | ||
| starts outside it, and a surface that does not scroll takes no pan while a | ||
| pinch still zooms the page. |
There was a problem hiding this comment.
This names spec:AST-094 as the owner of the pan-outside dismissal and the still surface, but the spec:AST-094 this pull request adds (FR1–FR23) states neither; only #8316's FR32 does, and #8316 adds the same file. Landing after #8316 and rebasing onto its record keeps this pointer from citing a rule that is not on main.
Comment on lines
+71
to
+72
| export const COMPACT_TOUCH_QUERY = | ||
| DEFAULT_COMPACT_DEFINITION.coarsePointerQuery; |
There was a problem hiding this comment.
spec:AST-012 FR9 makes compact "below the effective md point", and FR1 lets a theme override md. This query is built once from the default breakpoints, so presentation="adaptive" keeps switching at 768 px under a theme with its own md (a coarse-pointer tablet 800 px wide gets the popover where FR9 gives the sheet). Building it from the theme's breakpoints would conform.
| '@astryxdesign/cli': patch | ||
| --- | ||
|
|
||
| [feat] Themes can retune touch motion roles. `defineTheme({motion})` takes `springs`, `durations` and `curves` keyed by motion role, the table path of a measured touch motion value (`springs.sheetPresent`, `navigation.transitionMs`), at the root or in an adaptation rule, and writes one `--motion-*` variable per role it sets. A role the theme leaves out keeps its measured default, an unknown role id is refused, and the duration scale (`fast`, `medium`, `ratio`) is optional when a theme sets only roles. No shipped component reads the roles yet. `astryx docs motion` lists every motion role with its CSS variable and default, and the theme authoring guide and template describe the new fields. |
There was a problem hiding this comment.
"No shipped component reads the roles yet" no longer holds in this stack: Popover's touch presentation registers the springs table and the animator resolves each spring through resolveMotion (popoverSurfaceMotion.ts:321-323, motion/animator.ts:1536). The draft spec:AST-094 FR4 also says touch motion is not themable, so either FR4 or the roles need to change, and this sentence with them.
Motion and gestures are internal to core, so Lab reaches them through workspace imports of their module paths (@astryxdesign/core/motion/animator, @astryxdesign/core/gestures, @astryxdesign/core/utils/touchPresentation), which core's exports do not list. Vitest and Storybook already alias @astryxdesign/core to its source; Lab's typecheck and declaration build now map those paths to core's built types the same way.
- Selector DEC-1, AST-057, AST-025 FR14, design:user-states DR1 and DR3, AST-013 FR3 (an Android Chrome row for touch presentations) and the buttons family now point to or conform with AST-094. - FR34 states the drill-in itself. AST-094 no longer amends AST-057 FR2's custom property. - A useMenuPress caller that sets longPressDelayMs gets that wait in a fixed bar too, which keeps the released behavior. - useMenuPress drops its finger-on-a-tap text; Popover FR9 is pending implementation. - FR4's preset springs and curves are named by use. Co-authored-by: vjeux <197597+vjeux@users.noreply.github.com>
Contributor
|
Posted by Cindy's agent on her behalf. Remaining issues at 4a984aa:
|
…s close The browser hides a popover the moment it closes (a pick, Escape, its own light dismiss), so a touch presentation whose close stays on screen plays it on a copy of the popover taken as it closes. DropdownMenu's touch menu keeps a private one; Popover's touch presentation and others need the same, so the layer runtime gets one helper, Layer/layerExitCopy.ts (placeLayerExitCopy), with its own tests, and architecture:layer-runtime names it (the Exit copy section and INV13). It is the one exit copy a layer may have (architecture:component-style-authoring INV7); its owner removes it when its spring settles. Nothing uses it yet. - Drawn where the layer was drawn: laid out on the layer's own box (a fixed layer's offset box, fractions of its used size kept) and carrying the transform and opacity its running animations hold, so a copy taken while the layer is still entering holds where it was drawn. - No ids, no form names and no form owner (a cloned checked radio would otherwise take the live group's selection, and a named field would submit), inert, aria-hidden, takes no pointer events, scrolled as the layer was, with no alignment against the anchor it left. - One copy per layer: placing another for the same layer takes the previous one away; another layer's copy stays. - Shown only in the top layer, as a manual popover, so a clipping, transformed or sticky ancestor neither cuts nor moves it; no fixed box and no z-index stand in for it (spec:AST-027 FR8). Where the browser refuses the show during the closing popover's own toggle (Android Chromium 158: "Invalid to show a popover during another show operation"), the copy waits, hidden, and shows once the toggle is over: after the script that closed the layer (a microtask) or, for the browser's own light dismiss, in the next frame before it paints. A browser without the popover API, or one that still refuses, gets no copy (null), and the close is immediate. Browser proofs (Chromium, WebKit): a copy placed as a layer closes mid-entrance is in the top layer with no z-index, its drawn box the layer's within half a px; a light dismiss gets it too, uncut by a clipping, transformed panel; a second copy for the same layer replaces the first while another layer's copy stays.
…s back into it Measured on the iOS 26.2 simulator (UIPopoverPresentationController kept a popover with the .none adaptation): the popover grows out of the point where it meets its source, its scale (0.01 to 1), its length away from the source (100 pt to its own) and its opacity on one spring (mass 1, stiffness 331.901, damping 29.149), the edge on the source held in place; it shrinks back into the same point on the dismiss spring (283.973 / 28.648). Under Reduce Motion UIKit fades it on the same springs with no size or scale change; here the current design:reduced-motion record caps that fade (below). - popoverSurfaceMotion: the scale across the source's edge and the scale times the length along the axis away from it, played as closed-form curves on the compositor; interruptible both ways from the frame on screen. The close plays on the layer runtime's exit copy. Its pure geometry (popoverSurfaceFrame.ts: where it grows from, the frame at a progress) has no DOM and no animator, so the browser proof imports it on its own. - Popover: under a finger (the shared resolver's coarse primary pointer, one touch model on every touch device) it runs; a mouse keeps the layer's entrance. Its touch-only code sits behind one module, PopoverTouch.ts, imported once (AST-080 FR8). - spec:AST-094 FR31 (meta#8378) and component:Popover FR9 state this; the close plays on the layer runtime's exit copy (INV13), which stands where the surface is drawn and is null where there is no top layer (the close is then immediate). - motion/uikit: popover.ts (collapsed scale and length) and springs.popoverPresent / popoverDismiss, with their sources: theme motion roles (spec:AST-094 FR4), so a theme can retune them and the CLI's motion role table lists them; the touch presentation registers the springs table before its first animation, and imports its tables by path; M-PO1 for the popover above and beside its source. Under Reduce Motion it follows the animator's policy (design:reduced-motion, from meta#8076): on a coarse pointer it neither grows nor springs, it lands at its full size and cross-fades in, and out where it stands, opacity only, in 200 ms; on any other pointer it changes at once. UIKit itself fades a popover on its presentation springs, about half a second.
On iOS 26.2 a popover presented by a finger is dismissed by a pan that
starts outside it as soon as the pan begins, and the same touch goes on to
scroll what is under it; a tap or a hold outside dismisses at the lift. The
browser's light dismiss covers the tap and the hold but ignores the
pointercancel that announces a pan, so a touch-presented Popover stayed open
while the page scrolled under it.
DropdownMenu's touch menu closes on that pointercancel with its own effect.
The rule becomes a layer runtime hook, usePanOutsideDismiss (with its own
tests), which Popover uses through its touch module (PopoverTouch.ts);
DropdownMenu can move onto it in its own change. It listens for the press's
release only while a touch that went down outside is down
(react-component-runtime INV5), and reads its options through a ref, so a
re-render between the press and the cancel keeps the press. A popover with
hasLightDismiss={false} keeps its explicit dismissal. component:Popover
points to spec:AST-094 for this dismissal.
A pan that starts inside a popover whose surface does not scroll no longer
scrolls the page behind it: the still surface takes no pan (touch-action:
pinch-zoom, so a pinch still zooms the page), and a scrolling surface keeps
its pan with overscroll-behavior: contain, as before. On main that pan
scrolled the page and the popover rode away with its trigger; behind a UIKit
popover the page stays put.
A pan that starts on the trigger counts as outside: on iOS 26.2 a pan that
starts on a UIKit popover's source dismisses it as the pan begins and
scrolls the view under it, like any outside pan (a menu whose trigger's
press-and-drag picks a row would pass the trigger as inside). Nested
surfaces: a pan inside a parent popover but outside its child closes only
the child, and a pan in a dialog outside its popover closes only the
popover.
Contributor
Author
|
Both items are addressed in 84aa650:
|
vjeux
force-pushed
the
uikit/c26-popover-pan-dismiss
branch
2 times, most recently
from
October 25, 2026 07:42
4a984aa to
84aa650
Compare
8 tasks done
There was a problem hiding this comment.
Approval is on hold until an engineering owner decides two Popover touch rules that no current spec states: that a touch-presented Popover closes when a pan starts outside it (its trigger included), and that a surface that fits takes touch-action: pinch-zoom, under a mouse too. The spec:AST-094 this pull request carries is an earlier copy of the still-open #8378, so an engineering owner either approves the records at this head by commenting /approve-spec 84aa650f91df9a1e34e337e2fb65137bc994290e (the author may do so as an engineering owner), or the change waits for #8378 to land. Separately from that decision, these need changes:
- Once the predecessors land, rebase so the diff is this commit alone; as issued it carries 33,737 authored lines.
- Give the stack's velocity tracker one release filter that reads 0 after a still pause, as the current
interaction-modalityINV10 andAST-100FR2 require, without selectable strategies. - A pan outside while the popover is still growing closes it, which contradicts the FR35 that
component:PopoverFR9 adopts: ignore those touches, or take FR35 out of FR9. - Reword the exit-copy and motion-role changesets, which say nothing uses what this diff's Popover now uses.
[Automated review]
| follow(); | ||
| } | ||
| }; | ||
| doc.addEventListener('pointerdown', handleDown, true); |
There was a problem hiding this comment.
This arms as soon as the popover opens, so a pan outside that starts while the popover is still growing closes it and scrolls the page. component:Popover FR9 in this diff adopts spec:AST-094 FR35, which says a drag that lands during the growth must not close it or scroll the page. Either ignore outside touches until the present settles, or take FR35 out of FR9 until it ships.
| * header describes, `uikit` by default. | ||
| * @experimental | ||
| */ | ||
| export type VelocityStrategy = 'uikit' | 'lsq2' | 'iosFling' | 'window'; |
There was a problem hiding this comment.
interaction-modality INV10 and AST-100 FR2, now current on main, ask Core for one release filter that reads 0 when the contact stayed still before lifting, with no selectable alternatives. This tracker offers four strategies, and its uikit filter keeps the last moving value after a pause (lines 18–20), so a drag that rests before it lifts reports a flick velocity.
| '@astryxdesign/core': patch | ||
| --- | ||
|
|
||
| [chore] Internal: the layer runtime gains one exit copy for touch presentations that animate a popover out: a static, inert copy of the closing popover, shown only in the top layer where the popover was drawn, for the close to play on. Nothing uses it yet; no change in behavior. |
There was a problem hiding this comment.
In this diff every touch close of Popover plays on the exit copy (popoverSurfaceMotion.ts:312), so "Nothing uses it yet; no change in behavior" misdescribes the release that carries both.
| '@astryxdesign/cli': patch | ||
| --- | ||
|
|
||
| [feat] Themes can retune touch motion roles. `defineTheme({motion})` takes `springs`, `durations` and `curves` keyed by motion role, the table path of a measured touch motion value (`springs.sheetPresent`, `navigation.transitionMs`), at the root or in an adaptation rule, and writes one `--motion-*` variable per role it sets. A role the theme leaves out keeps its measured default, an unknown role id is refused, and the duration scale (`fast`, `medium`, `ratio`) is optional when a theme sets only roles. No shipped component reads the roles yet. `astryx docs motion` lists every motion role with its CSS variable and default, and the theme authoring guide and template describe the new fields. |
There was a problem hiding this comment.
"No shipped component reads the roles yet" no longer holds here: Popover's touch presentation registers the springs table and plays springs.popoverPresent and springs.popoverDismiss through the theme (popoverSurfaceMotion.ts:213, :285, :330).
This was referenced Oct 25, 2026
Contributor
Author
|
Closing: |
This branch was successfully deployed
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Depends on #8187 (and its predecessors); review the last commit.
User impact
Under a finger, a Popover stayed open when the user started scrolling the page elsewhere: it rode along with its trigger. A drag inside it scrolled the page too (also on main).
Evidence

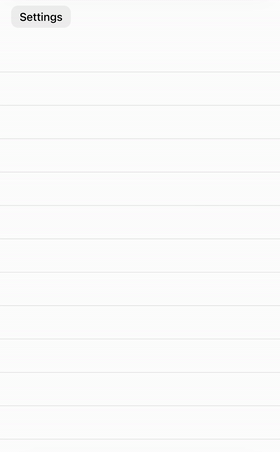

iOS 26.2 Safari, a lined page; a grey dot marks the finger. A pan from the lower right; before (#8187), then after:

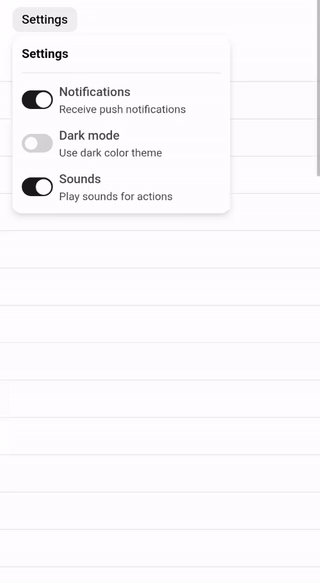

Android 15 emulator, Chromium 158 (540×1200, every frame reviewed); before, then after:
pointercancelas the pan begins; the popover stays open and rides up with the page.pointercanceland shrinks into its trigger as the page scrolls. A tap or a 300 ms hold outside still closes it at the lift.A pan that starts inside the popover; before, then after:
Problem and solution fit
Light dismiss acts when an outside tap lifts. A pan never lifts: the browser takes it for a scroll and ends it with
pointercancel, which light dismiss ignores. On iOS 26.2 a pan that starts outside a popover dismisses it as it begins; a drag inside leaves the page alone.The rule becomes a layer runtime hook,
usePanOutsideDismiss, in Popover's touch module. It listens for a press's release only while a touch that went down outside is down (INV5). A still surface now takes no pan while a pinch still zooms the page (touch-action: pinch-zoom); a scrolling one keeps its own (overscroll-behavior: contain).Expected behavior and authority
family:overlay-dismissalAV4 leaves outside dismissal, touch included, to the member;spec:AST-094FR32 (spec(AST-094): touch presentations feel native by default #8378) states this dismissal andcomponent:PopoverFR9 points there.touch-action: none(FR32, FR10, FR18; WCAG 1.4.4).hasLightDismiss={false}keeps a popover open through a pan, as through a tap.Scope
Testing
pnpm vitest run packages/core/src/Popover packages/core/src/Layer packages/core/src/motionon feat(Popover): under a finger, it grows out of its trigger and shrinks back into it #8187: 754 pass, includingusePanOutsideDismiss.test.tsx(no release listeners until a touch goes down outside; a re-render between the press and the cancel keeps it) and the Popover cases: a pan outside closes it, a pan from the trigger closes it, a pan inside a parent but outside its child closes only the child,hasLightDismiss={false}keeps it, a mouse keeps it.pnpm test:interaction PopoverTouchMotion.interaction.browser.spec.ts --project chromiumafterpnpm storybook:build: 10/10, the pan-inside proof readingtouch-action: pinch-zoomon the still surface; WebKit: 5/5 (5 Chromium-only cases skip). The pan-outside, pan-from-the-trigger and pan-inside proofs fail against feat(Popover): under a finger, it grows out of its trigger and shrinks back into it #8187's build.pnpm check:knowledge.pnpm exec vitest run --project node packages/cli/test: 309 pass.Stack (merge in this order): #8076 and #8378 → #8186 → #8187 → this PR → #8208 (with #8176) → #8223.
