fix(Wheel): the touch wheel draws only the rows around its band - #8289

Closed
vjeux wants to merge 548 commits into
meta:mainfrom
vjeux:uikit/c21-wheel-window
Closed

vjeux wants to merge 548 commits into
meta:mainfrom
vjeux:uikit/c21-wheel-window

Conversation

@vjeux

@vjeux vjeux commented Oct 24, 2026 •

Copy link
Copy Markdown
Contributor

Depends on #8162 (and its predecessors); review the last commit.

User impact

Under a finger, opening a DateInput or DateTimeInput sheet, or its month and year wheels, freezes the page longer for each year in the range; the sheet's motion skips. #8209 surfaced it.

Evidence

iOS 26.2 simulator, BottomSheetWideRange (200 years), worst frame gap after each tap, 2 runs:

Open the sheet Open month and year Back to the calendar
#8162 242–753 ms 278–754 ms 169–280 ms
This PR 47–102 ms 54–65 ms 51–59 ms

On #8209's story: 175–238 ms with 101 years, 58–59 ms with one. Cutting the looping copies changed nothing; the cost is rows.

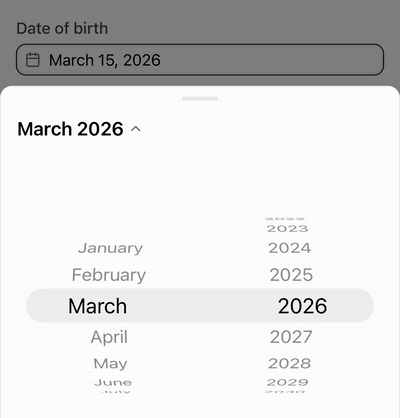

Across the window's edge, each row is drawn before it shows (a blue dot marks the finger, drawn for the recording):

Fling Slow drag
Fling Drag

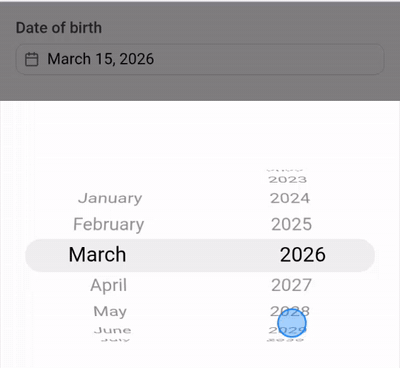

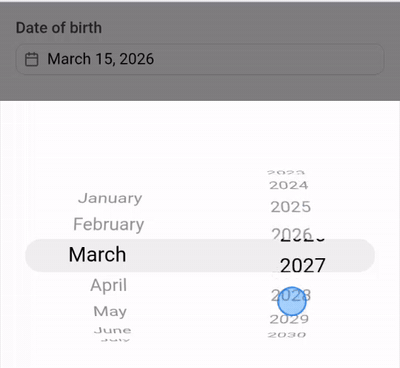

Android 15 emulator, Chromium 158, 200 years:

Fling to the end Slow drag
Fling Drag

Problem and solution fit

  • Why: the touch wheel draws every option twice, each cylinder row its own 3D layer.
  • Harm: showing a wheel pays per row; date ranges span decades.
  • Why it matters: the cost lands as a sheet animates.

UIPickerView lays out only the cells it shows. PickerWheel now draws the cylinder's rows within 90° of the band and the band copy's three rows, each with 2 more on each side: at most 15 and 7, for any list. Motions mount their rows before playing (a reduced-motion cross-fade, at its midpoint); drags move the window near its edge; it settles back at rest. The band copy's rows sit at their positions, so looping needs no strip copies. The listbox keeps every option, stacked transparent over the band, for assistive technology. Today's column, under a fine pointer, is unchanged.

Also: WheelGroup keeps its element in a ref and flags its mount, so each column places its vanishing point once the group mounts.

Expected behavior and authority

spec:AST-094 (#8378) FR5; UIPickerView's cell reuse.

Smallest restoration

The window lives in PickerWheel.tsx, row attachment in wheelMotion.ts, the strip's position in wheelDrum.ts; no API change. Stories with 200 and 2 years back a browser proof. #8162's busy proof now marks the drawn row.

Scope

  • One defect is restored.
  • Separable contradictory or unsettled tagalongs were removed or split.
  • No new public API, visual representation, default, or interaction model is hidden under the bug-fix label.
  • Public text and artifacts contain no internal Meta context.

Testing

  • PickerWheel.test.tsx: the window (15 cylinder and 7 band rows of 200, every option listed), the ends, a fling drawing its path then settling, a drag moving the window, a looping window wrapping, keys past the window, the vanishing point once the group mounts, and the selection lock under a held finger (fails without preventsTextSelection). The window cases fail on test(Wheel): the picker wheel's browser proofs, storyboard and activation #8162.
  • WheelActivation.interaction.browser.spec.ts: under a finger, rows on the cylinder are 2 of 2 and at most 15 of 200 (200 on test(Wheel): the picker wheel's browser proofs, storyboard and activation #8162: red), and at 4× CPU throttle the 200-year opening stays within the 2-year one; under a mouse the year wheel is today's column with every year. On the stack top's build, Chromium 2 passed; WebKit 1 passed, 1 skipped (mouse).
  • On the stack top's build: Wheel.interaction.browser.spec.ts, Chromium 7 passed and WebKit 4 passed, 3 skipped; the rest and pinch-zoom specs, 11 passed.
  • pnpm exec vitest run packages/core/src/DateInput packages/core/src/TimeInput packages/core/src/DateTimeInput packages/core/src/motion packages/core/src/gestures packages/core/src/utils packages/core/src/BottomSheet: 95 files, 2320 tests.
  • pnpm -F @astryxdesign/core typecheck, ESLint and Prettier on touched files, pnpm check:changesets.
  • iOS 26.2 simulator: the rAF logs above, and the two clips.

Stack (merge in this order): … → #8156 → #8159 → #8161 → #8162 → this PR (the full order is in #8156).

@vercel

vercel Bot commented Oct 24, 2026 •

Copy link
Copy Markdown

The latest updates on your projects. Learn more about Vercel for GitHub.

Project Deployment Actions Updated
astryx Ready Ready Preview Oct 26, 2026 3:01am UTC

Request Review

@astracat-bot

astracat-bot Bot commented Oct 24, 2026 •

Copy link
Copy Markdown

AI review status for this pull request.

Review status Updated
⏳ Queued (for maintainers only) Oct 26, 2026, 2:52 AM UTC

@github-actions github-actions Bot added the needs:design-review Affects visuals — Design should review label Oct 24, 2026
@meta-cla meta-cla Bot added the CLA Signed This label is managed by the Meta Open Source bot. label Oct 24, 2026
vjeux added a commit to vjeux/astryx that referenced this pull request Oct 24, 2026

@astracat-bot astracat-bot Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This pull request can't be approved yet: the row window and the UIKit wheel it builds on rest only on spec:AST-094, a draft record added in this stack, so an engineering owner has to approve or reject AST-094 (FR5 and FR9 in particular) as the picker wheel's governing spec, by commenting /approve-spec <full head SHA> on this pull request; as an engineering owner, the author can record that decision too. Three changes are needed whatever that decision is:

  • Land #8162 and its predecessors first (or rebase onto a base that has them), so this pull request holds only its own 1,052-line commit instead of the 30,375-line stack.
  • WheelGroup keeps its DOM element in React state (WheelGroup.tsx:88), which architecture:react-component-runtime INV1 rules out; keep the element in a ref and put only a mount flag in state.
  • The mouse-drag cases deleted from DateInputTouch.test.tsx point to Wheel.test.tsx, which has no mouse case; a primary-button drag that turns the wheel and a secondary button that does not need tests there.

The -webkit-touch-callout tweak belongs in its own change, proven by a computed-style check rather than the current source-text test.

[Automated review]

* ```
*/
export function WheelGroup({children}: WheelGroupProps) {
const [element, setElement] = useState<HTMLDivElement | null>(null);

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This keeps the group's DOM node in React state, which architecture:react-component-runtime INV1 rules out ("DOM nodes and whole DOM collections MUST NOT be stored in React state; store only the minimal rendering key or own the node through a ref"). Keeping groupRef and putting only a mount key in state would conform: for example a callback ref that sets groupRef.current and flips an isMounted flag that the Wheel's placement effect depends on.

Copy link
Copy Markdown
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Fixed in 8f8a358: the element stays in a ref; the group's context carries groupRef and an isMounted flag that a callback ref flips, and the Wheel's placement effect depends on it. New case "hands its element to the wheels without keeping it in React state" fails before the change; the vanishing-point-without-ResizeObserver case still passes.

});
});
});
// A finger or a mouse dragging a wheel goes through the gesture system: see

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

The six mouse-drag cases removed here are replaced by this pointer to Wheel.test.tsx, but that file has no mouse, pointer or button case. architecture:component-test-sufficiency INV3 keeps existing regression evidence until equivalent evidence subsumes it; a Wheel.test.tsx case for a primary-button mouse drag that turns the wheel, and one for a secondary button that does not, would cover it.

Copy link
Copy Markdown
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

At this head the six mouse-drag cases are present (a mouse gets today's column), and PickerWheel.test.tsx has primary- and secondary-button mouse cases for the touch column.

});

it('neither selects text nor opens the callout under a held finger', () => {
const source = readFileSync(

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This reads Wheel.tsx as text, so it passes whatever the compiled column does; architecture:component-test-sufficiency INV6 does not count an assertion that repeats a source declaration. A browser check of the column's computed -webkit-touch-callout would prove the behavior, and the callout change itself fits better in its own pull request.

Copy link
Copy Markdown
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Agreed, and the source check is gone at 8f8a358. The wheel's pan takes the gesture system's selection lock (preventsTextSelection, #8270, used from #8159) and the column's own user-select and callout styles are dropped. A jsdom case checks that the lock lands on the column under a held finger and lifts after (it fails without preventsTextSelection). On the iOS 26.2 simulator the column computes -webkit-user-select and -webkit-touch-callout none from touchstart to touchend (trace).
