What

Playset — Three.js mini-games (GameBlocks-class) running on Pocket, end to end: framework, native rendering on desktop wgpu AND PSP GE, and the first four games.

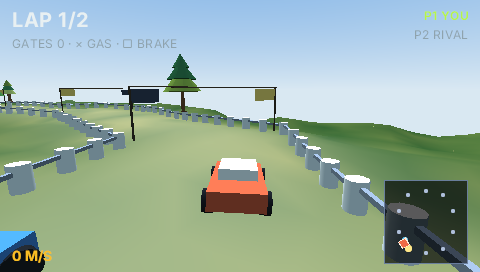

rally desktop

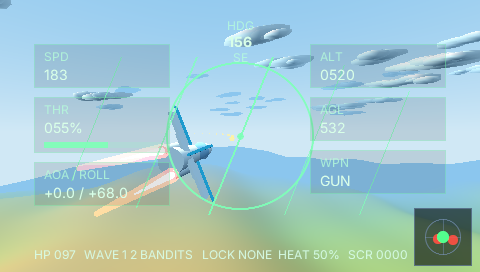

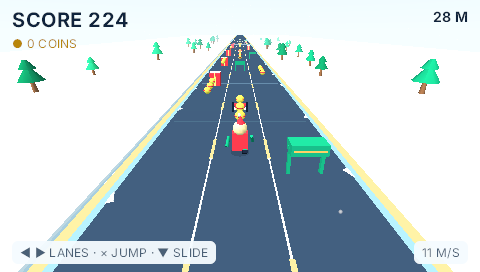

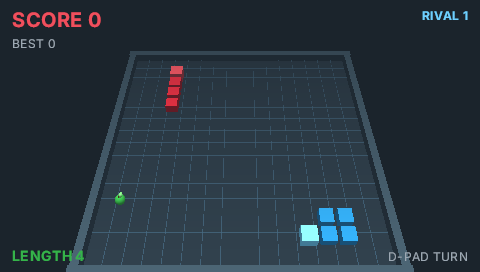

Same bundle on the PSP host under PPSSPP: RMSE 5.4% vs the desktop frame. Wave-1 ports: runner · dogfight · snake

Layers

  1. scene3d surface (playset/scene3d/) — closed write-only 3D presentation vocabulary (the 3D sibling of ui): batched writePoses, primitives/heightfield/mesh, vertex-lit fixed-function-honest materials, sun/hemisphere/fog/sky, sprite & beam pools, bindViewport per the <Video> precedent. TS client + <Viewport3D> + renderless sim host for goldens.
  2. playset/modules/ — all 74 GameBlocks modules (MIT, attributed) + 3 natives (deterministic CollisionWorld replacing Rapier, blob-shadow, color-utils). Copy-into-project source per SKILL.md (with the Three.js → playset mapping table).
  3. Native cores — PROP.scene3d + DRAW_OP.sceneQuad through spec/core (all four DrawList consumers; graceful absence, zero golden drift). Desktop: pocket3d/crates/pocket-scene3d (retained store + rquickjs s3 mount + wgpu vertex-lit renderer), composited in uihost. PSP: the store goes no_std behind a feature gate (one semantics, two hosts — the pocket3d-bsp pattern) with native/src/{scene3d,ge3d}.rs: QuickJS C-API mount, GE hardware sun + hemisphere-average ambient, sceGuFog, depth-only clear, additive pools, 2D-clean exit. Always-on perf probe (avg_js_us per 300 frames) answers the 333 MHz QuickJS question on hardware: bun run hw rally -r.
  4. Games — demos/rally (original composition) + wave-1 ports demos/runner, demos/dogfight (17 modules as-is; FlightHud + radar in action), demos/snake (A*/flood-fill AI rival). Each: fixed-step deterministic sim, two-boot byte-identical goldens, exact 30↔60 Hz subsampling, no-s3 degradation, uihost screenshots in-repo.

Validation

  • 365 bun tests / 5,879 assertions green (bun run test builds all five game bundles); tsc --noEmit clean; 12 pocket-scene3d cargo tests; no_std build clean; clippy clean
  • PSP: all 23 ui e2e goldens byte-exact under PPSSPP, tape:check 180 frames, rally renders at RMSE 5.4%/5.3% vs desktop refs
  • Desktop hero-main screenshot: pixel-identical (2D path inert)

Follow-ups

  • Wave-2 ports (shooters/defense ×6), wave-3 (vehicles/water/marble/arm), voxel-survival last (needs a voxel-world module)
  • Playset gap backlog from wave-1: instanced-geometry verb, pooled-entity helper, edge-triggered input in GameInput, flight-pursuit behavior module, per-target hit radii on projectiles, default font slot for unclassed Text (systemic), point-light verb, frameBounds camera solver, BoardEnvironment rim option, exp fog
  • Rust hot-path blocks behind the batch seams; mid-DrawList compositing (v1: scene under all ui); ramp wedge collision; textured materials; pocket port funnel skill
  • Hardware perf spike: bun run hw rally -r on the real PSP (PSPLINK console prints the probe)

🤖 Generated with Claude Code

doodlewind and others added 6 commits July 11, 2026 07:41
@doodlewind @claude
feat(playset): scene3d surface contract + client + sim host, math lib…
c138d54
…, foundation modules

- scene3d: closed write-only presentation vocabulary (ops.ts), retained
  guest mirror with batched pose flush (client.ts), renderless sim host
  with canonical serialization for goldens (sim.ts), <Viewport3D>
- playset/math: clean-room three@0.161-compatible math subset
- modules/math: WorldBasis, Vector3Utils, Scalar/Random/TimeUtils ports
  (Clock defaults to the virtual clock, never Date.now)
- modules/physics: deterministic CollisionWorld (capsule resolve,
  raycasts, walkable tops) — the injected-Rapier replacement seam
- loop.ts: fixed 1/60 game loop, hz-invariant via ticksPerFrame catch-up

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
@doodlewind @claude
feat(playset): port all 74 GameBlocks modules across 7 categories
8ba5c55
actor-motion (18), behavior (6), camera (5), gameplay (8), math (5),
user-interface (8), world (24) — kebab-case files, PascalCase exports,
verbatim semantics with per-file deviation notes and MIT attribution.

Reengineered seams (documented in headers):
- KinematicBatchResolver + DynamicCarBatchResolver run on the
  deterministic CollisionWorld (Rapier replaced; dynamic car is a
  kinematic raycast-vehicle approximation pending the native block)
- AimResolver picks via CollisionWorld.raycast + Camera3D.rayFromNdc
- visual factories/effects build SceneNode trees; JetFlame shader ->
  additive cones; tire marks/tracers -> beam pools; shadows ->
  blob-shadow.ts decals
- DOM/Canvas2D HUD -> Solid components (radar/minimap as View trees)

243 new tests (344 total in playset/), all green; repo test script now
runs playset/test/.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
@doodlewind @claude
feat(playset): rally demo E2E, module catalog, skill + docs
75bc06f
- demos/rally: checkpoint-racing demo composing track environment,
  arcade car + AI rival (waypoint driver), kinematic resolver, chase
  camera, Viewport3D + HUD (lap/standings/minimap)
- playset/test/rally-sim.test.ts: host-sim goldens — byte-identical
  framebuffer + scene3d serialization across boots, 30/60 Hz exact
  subsampling relation, graceful no-s3 degradation
- summary.md (77-entry catalog), README.md, SKILL.md with the
  Three.js -> playset porting mapping table

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
@doodlewind @claude
feat(spec): PROP.scene3d + DRAW_OP.sceneQuad — host-composited 3D bac…
01872d8
…kdrop

Core emits sceneQuad(xy, wh, handle) at a node's world AABB before its
background when the host has bound a scene3d scene (host-written prop,
never app code). All DrawList consumers skip it gracefully: wasm raster
and PSP GE draw nothing (graceful absence), pocket-ui-wgpu skips (the
3D-capable host composites from the same DrawList). No golden drift —
the prop is only ever set by hosts with a scene3d core.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
@doodlewind @claude
feat(scene3d): pocket-scene3d native core — rally renders on the desk…
ab90608
…top host

New pocket3d/crates/pocket-scene3d: retained store implementing the
scene3d contract (sim.ts semantics: id lifecycle, silent dead-handle
ops, pool replace+clamp, heightfield tessellation with smooth normals),
rquickjs mount as globalThis.s3, and a wgpu renderer — per-scene pass
into the sceneQuad rect: gradient sky, per-vertex sun+hemisphere lit
meshes with linear fog (fixed-function honest), back-to-front
transparent/additive, camera-facing sprite pools + view-aligned beams.

pocket-ui-wgpu grows scene_quads() (DrawList walker) + UiSurface
set_prop passthrough. uihost mounts s3 before eval, bridges
bindViewport -> PROP.scene3d, composites scenes under the ui layer
(LoadOp::Load), adds --hold for scripted screenshot input. rally
verified visually at 480x272 (terrain/fog/cars/gates/HUD); hero-main
regression unchanged; 12 crate tests + full bun run test green.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
@doodlewind @claude
chore(rally): move milestone screenshots next to the demo
6024b0f
Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
@doodlewind doodlewind changed the title feat(playset): scene3d surface + full GameBlocks module port + rally E2E feat(playset): scene3d surface + GameBlocks port + native wgpu core — rally renders Jul 11, 2026
doodlewind and others added 2 commits July 11, 2026 11:31
@doodlewind @claude
feat(scene3d-psp): sceGu backend — the same rally bundle renders on t…
370de45
…he PSP host

pocket-scene3d store goes no_std+alloc behind a feature gate (desktop
keeps mount+wgpu under default 'std'; BTreeMap swap, fmath shim) so both
hosts share one semantics. native/ gains scene3d.rs (globalThis.s3 over
the QuickJS C API, bindViewport -> PROP.scene3d) and ge3d.rs (SCENE_QUAD
compositor: rect-scoped viewport/scissor, depth-only clear, gouraud sky
strip, GE hardware sun + hemisphere-average ambient, sceGuFog, additive
pools, 2D-clean exit state). Always-on perf probe logs avg_js_us every
300 frames for the 333MHz hardware spike (bun run hw rally -r).

PPSSPP-verified: rally f10/f240 at RMSE 5.4%/5.3% vs the desktop wgpu
references; all 23 PSP ui goldens byte-exact; tape:check 180 frames;
desktop uihost screenshot byte-identical after the store rework.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
@doodlewind @claude
feat(demos): wave-1 GameBlocks game ports — runner, dogfight, snake
9d25615
Three ports following the rally pipeline (fixed-step sim, seeded PRNG,
Viewport3D + HUD, sim-host goldens, uihost screenshot verification):
- runner: 3-lane endless runner (jump/slide, coins/boost, difficulty
  ramp, snow sprite pool) — clean-room glue, numbers from the original
- dogfight: the flight+combat+UI showcase — 17 playset modules as-is,
  FlightHud + HeadingRelativeRadar in action, wave AI, missile lock,
  terrain crash referee
- snake: 16x16 grid arena vs A*/flood-fill AI rival, cadence ramp

16 new sim tests (byte-identical two-boot traces, 30/60 Hz subsampling,
no-s3 degradation, gameplay probes); all bundles in the test chain.
Module adaptations: WeaponEffectsSystem gains tracerWidth/particleSize
options; FlightHud gets font classes + 480x272 layout fixes (unclassed
Text renders nothing on native hosts — systemic gap noted for core).

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
