madflight is a toolbox to build high performance flight controllers with PlatformIO or Aduino IDE for ESP32-S3 / ESP32 / RP2350 / RP2040 / STM32. A functional flight controller can be build for under $10 from readily available development boards and sensor breakout boards. Or, buy a complete flight controller.
Build a multicopter or airplane with PlatformIO or the Arduino IDE
For additional help see Discussions
If you clone/download this repository you get the DEVELOPMENT version, which is BLEEDING EDGE - not flight tested at all, might not even compile, and will completely change in the next hour...
Download a release version if you want something that actually has logged flight hours.

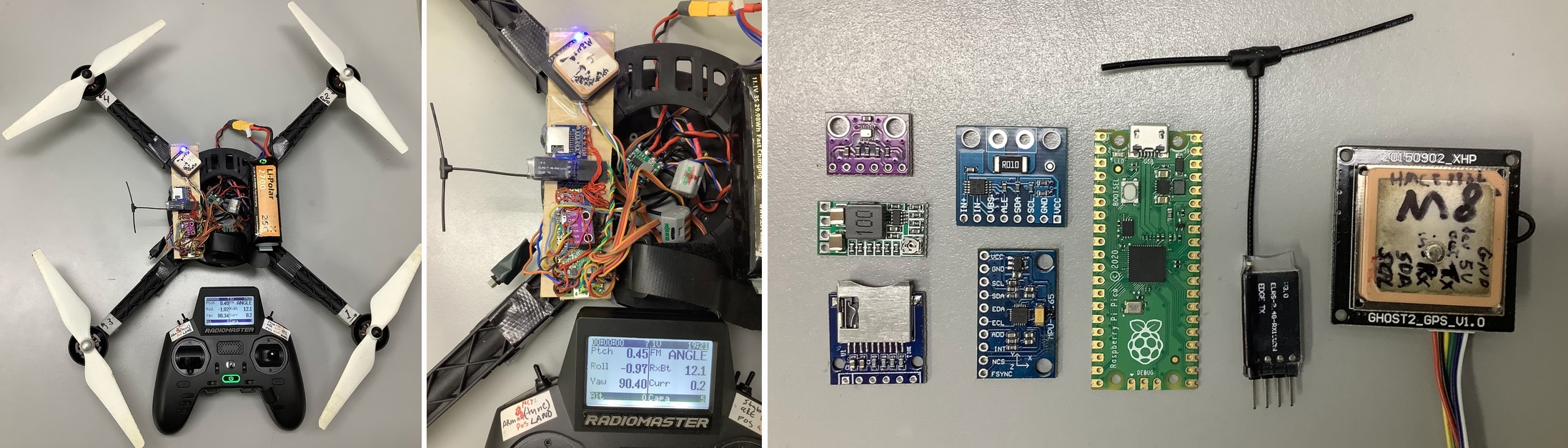

- Raspberry Pi Pico
- MPU6500 Gyro/Acc Module
- BME280 Barometer Module
- INA226 Current Sensor Module
- Micro SD Card Module
- Mini DC-DC 12-20V to 5V 3A Buck Converter
- uBlox M8 GPS with QMC5883L Compass Compass
- ELRS receiver
- DJI E300 Propulsion System (9.4x4.3 props, 2212 920KV motors, 15A ESCs)
- Frame of a Ideafly IFLY-4 Quadcopter

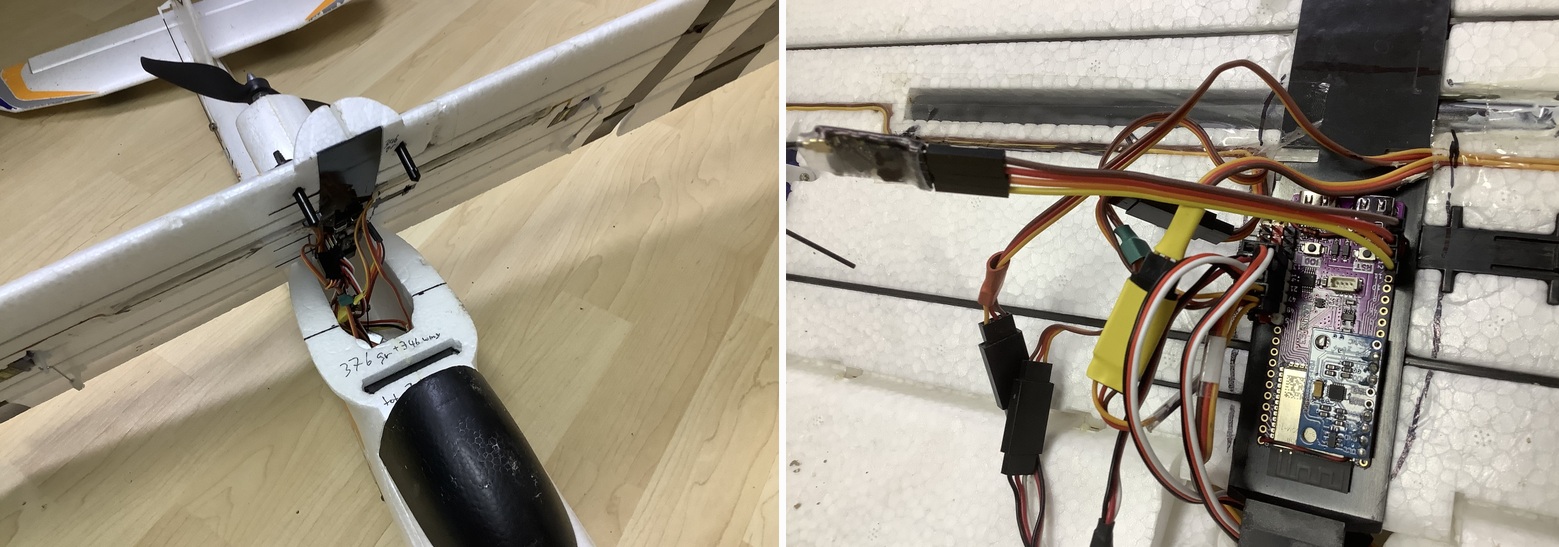

- ESP32-S3 Dev Board
- MPU9250 Gyro/Acc/Mag Module
- ELRS receiver
- Hobbyking Bixler 3 155cm
This build does not use the default board for ESP32. And a custom pinout is used, so that the MPU6500 board can be soldered directly with pins to the ESP32 board, and just requires the red wire for 3V. The I2C sensor boards are also soldered directly with pins, plus one black ground wire.

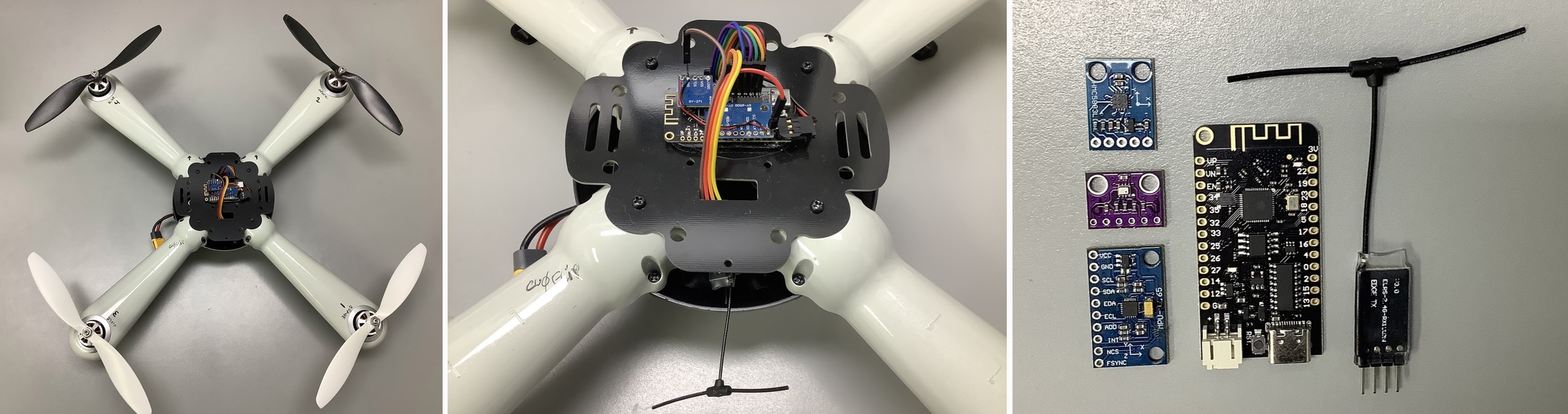

- Lolin ESP32 Lite
- MPU6500 SPI Gyro/Acc Module
- ELRS receiver
- Dualsky Hornet 460 Quadcopter minus original brain
- BME280 Barometer Module
- QMC5883L Magnetometer Module

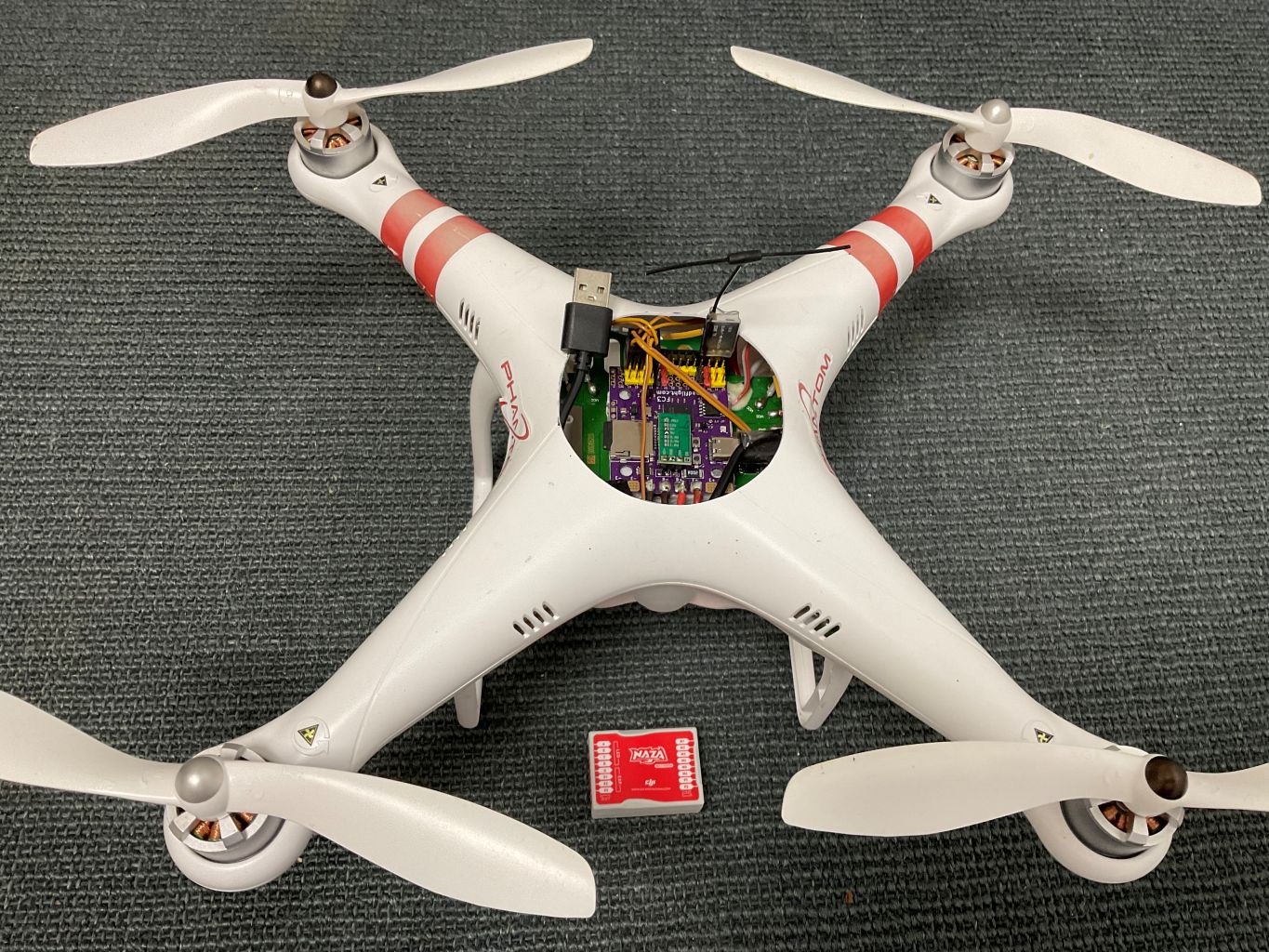

Swapped existing NAZA flight controller with a madflight FC3 RP2350. The existing ESCs are recycled and driven in PWM 400Hz mode.
- DJI Phantom 1 P330
- madflight FC3 RP2350 Flight Controller
- ELRS Nano Receiver
- Short USB-C cable for programming

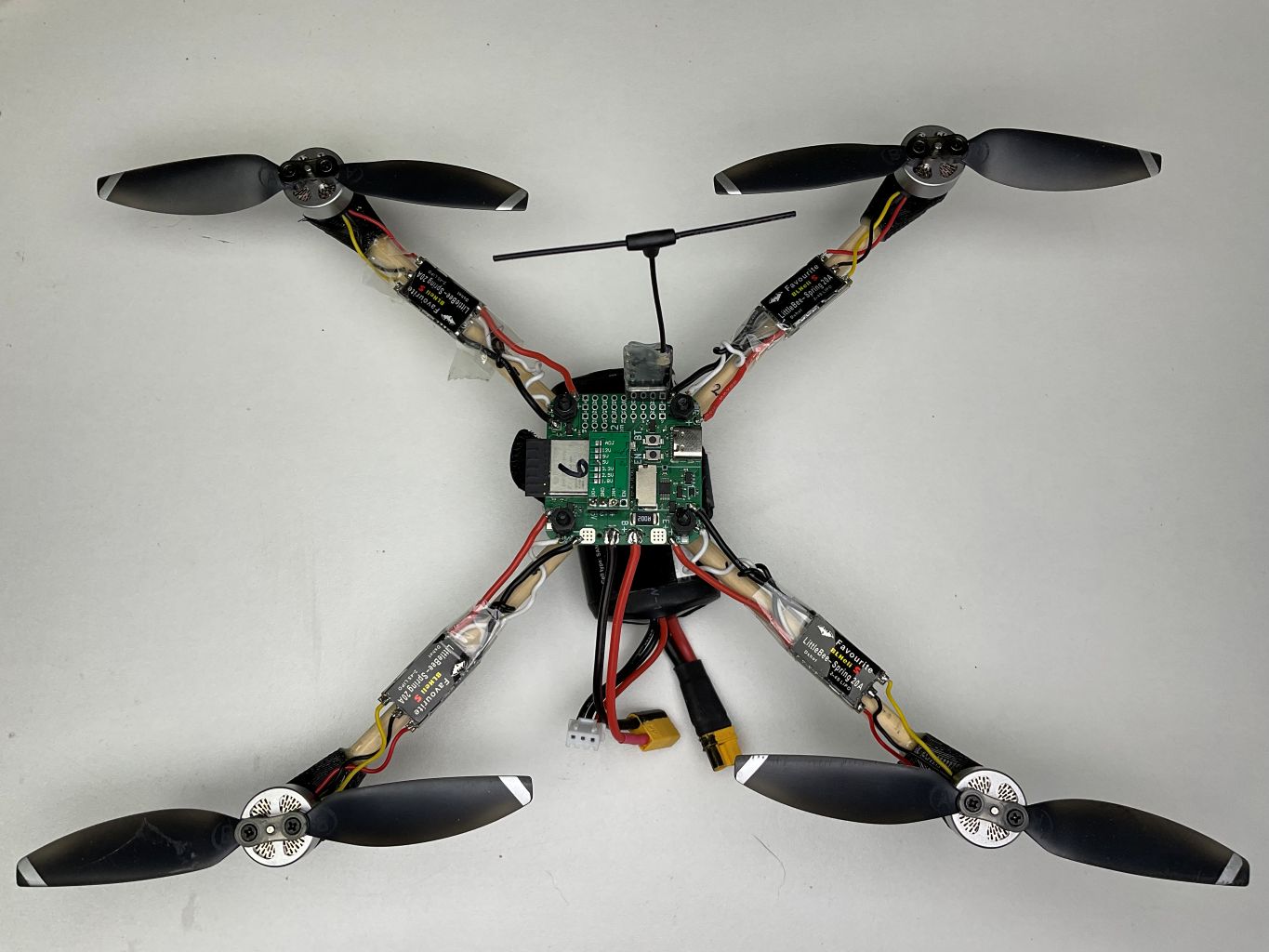

Lightweight frame made from 6mm bambu rods + 3D printed PETG motor mounts
- madflight FC1 ESP32-S3 Flight Controller
- ELRS Nano Receiver
- ESCs: Favorite LittleBee Spring 20A with BlueJay bidir DSHOT
- 1503 Motors
- Folding 5" 120mm props
- Weight: 201 gr (including 2S 18650 battery)

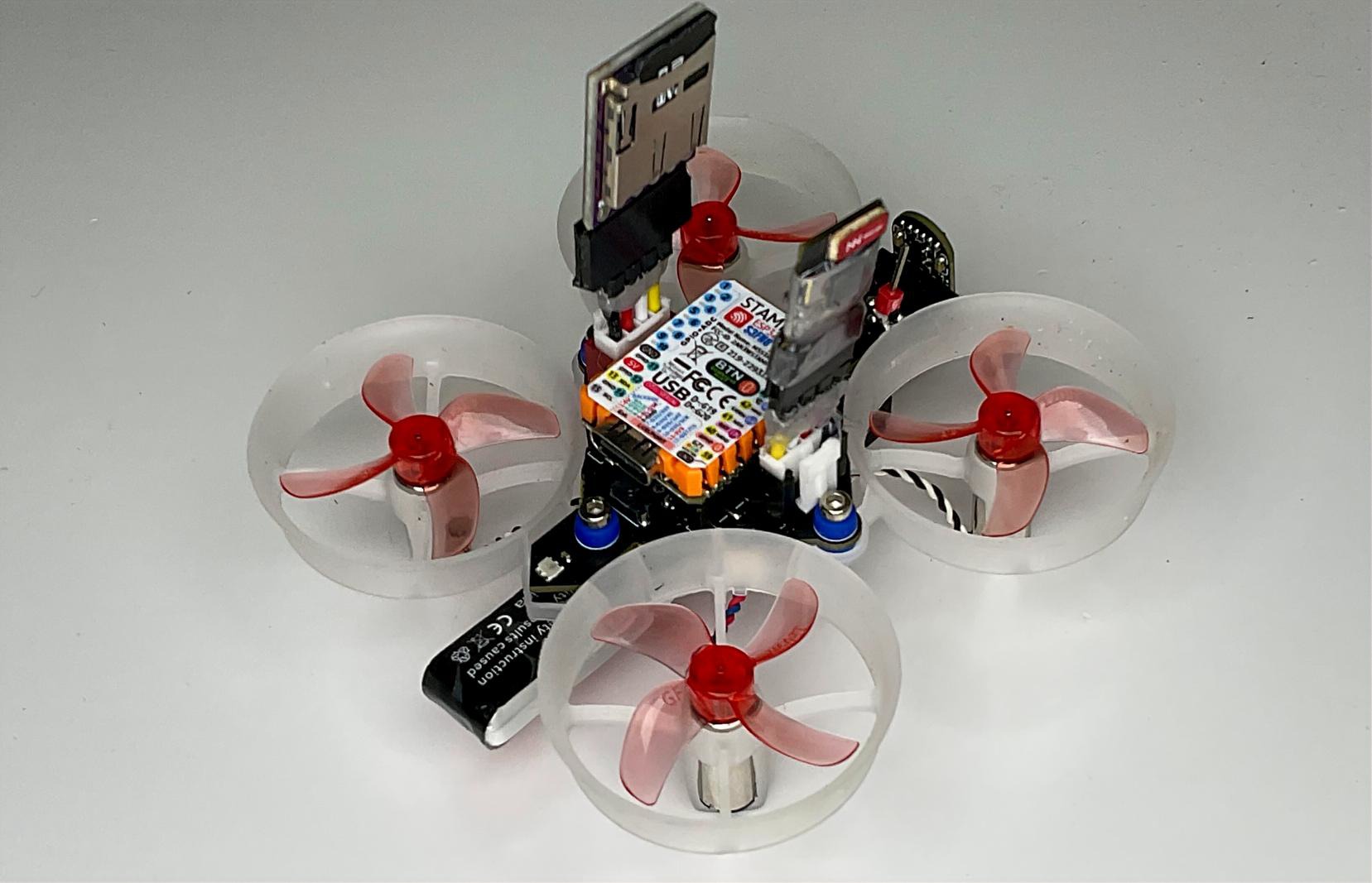

- M5Stack Stampfly
- ELRS Nano Receiver
- Openlog SDCard logger
This code is a shared, open source flight controller for small micro aerial vehicles and is intended to be modified to suit your needs. It is NOT intended to be used on manned vehicles. I do not claim any responsibility for any damage or injury that may be inflicted as a result of the use of this code. Use and modify at your own risk. More specifically put:
