feat(Popover): under a finger, it grows out of its trigger and shrinks back into it - #8187

Draft
vjeux wants to merge 1913 commits into
meta:mainfrom
vjeux:uikit/c26-popover-present
Draft

vjeux wants to merge 1913 commits into
meta:mainfrom
vjeux:uikit/c26-popover-present

Conversation

@vjeux

@vjeux vjeux commented Oct 24, 2026 •

Copy link
Copy Markdown
Contributor

Review only this PR's change: vjeux/astryx@2ed0645...66038f6

Depends on #8186 and #8176 (in 2ed0645). Merge order: #8076 → #8186 → this pull request → #8208 (with #8176) → #8223.

An open review asks to take the presentation hold from the layer runtime (INV14), restore main's layer-runtime document, and rebase once the dependencies land; the code described here changes with that.

This pull request shows a merge conflict with main in the CLI's icon-set search goldens; it comes from the keyboard module below it (#8559), which resolves it, and this branch takes that fix with its next push.

Why

On a phone, Popover opens with the desktop entrance (a short fade and a 5% scale) and vanishes at once when dismissed, where an iOS popover grows out of its control and shrinks back into it. A mouse keeps today's motion.

What led to it

We are bringing Astryx's touch components to the behavior of native iOS controls, with one touch model for every touch device (spec:AST-094, #8378). For the Popover we measured iOS 26.2's popover on the simulator: it grows out of the point that meets its source, with scale (0.01 → 1), size and opacity on one spring (stiffness 331.901, damping 29.149), wider before taller, and dismisses along the same path on its own spring (283.973 / 28.648), interruptibly.

Options and tradeoffs

  • A uniform scale from the trigger: simple, but it grows tall too early (81 pt at 50 ms where iOS is at 47 pt).
  • Revealing it with clip-path: not composited, so it stutters whenever the page is busy.
  • Scale, size and opacity on the measured springs as compositor animations, with the dismissal played on an inert copy (chore(core): the layer runtime's exit copy, for a touch presentation's close #8186) so the real popover leaves the page at once (this pull request). It costs 12.4 KB gzip on the Popover import (49.8 → 62.3 KB).

Why this choice

It follows iOS frame by frame (the scale tracks the spring within 0.009), keeps moving with the main thread blocked, and can be presented again mid-dismissal; Reduce Motion gets a 200 ms opacity fade. No API change: under a finger it writes inline scale, opacity and transform-origin, plus a short-lived inert exit copy. The arrow comes later.

How to check it

  1. Open Storybook's Popover stories with touch (a phone, or touch emulation) and tap a trigger: the popover grows out of it, wide first. Tap outside: it shrinks back into the trigger.
  2. Tap the trigger again while it shrinks: it grows back from where it is.
  3. With Reduce Motion on: it fades in and out instead.
  4. With a mouse: unchanged.
  5. The Popover interaction specs (Chromium, WebKit) and unit tests pass.

Evidence

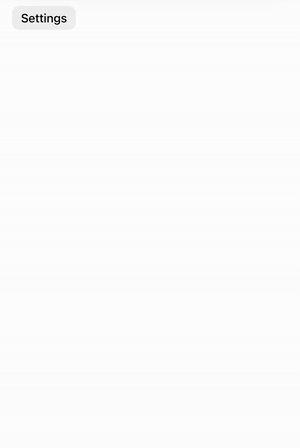

iOS 26.2 simulator, before and after:

Before After

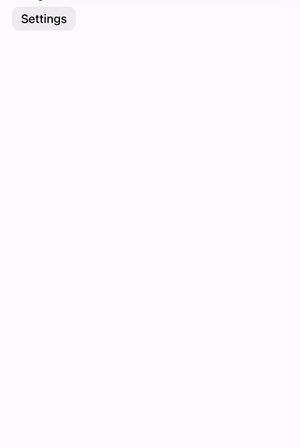

Main thread blocked 400 ms; presented again mid-dismissal:

Busy main thread Presented again

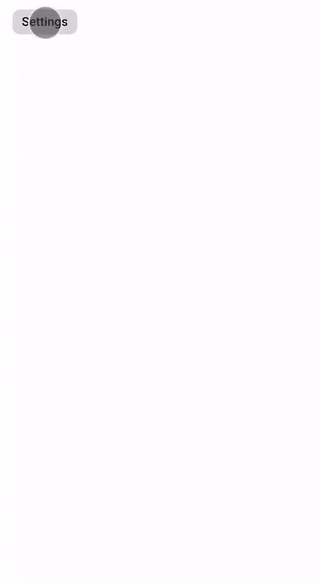

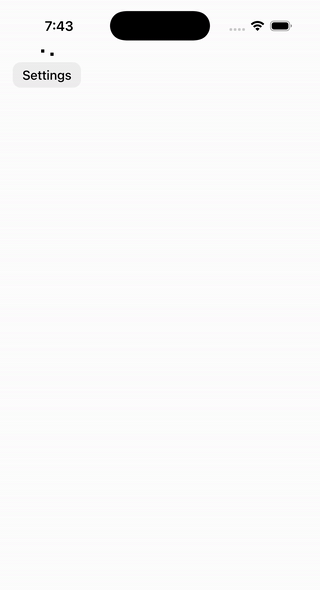

Android 15 emulator (Chromium), before and after; Reduce Motion:

Before After Reduce Motion

@vercel

vercel Bot commented Oct 24, 2026 •

Copy link
Copy Markdown

The latest updates on your projects. Learn more about Vercel for GitHub.

Project Deployment Actions Updated
astryx Ready Ready Preview Oct 30, 2026 12:06am UTC

Request Review

@astracat-bot

astracat-bot Bot commented Oct 24, 2026 •

Copy link
Copy Markdown

AI review status for this pull request.

Review status Updated
🟡 Reviewed (for maintainers only) Oct 30, 2026, 12:27 AM UTC

@github-actions github-actions Bot added the needs:spec-owner-review Current knowledge records await owner approval label Oct 24, 2026
@meta-cla meta-cla Bot added the CLA Signed This label is managed by the Meta Open Source bot. label Oct 24, 2026

@astracat-bot astracat-bot Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This pull request can't be approved yet: Popover's touch presentation rests only on draft spec:AST-094, added in this stack, so an engineering owner needs to approve that spec for this head or name the record that should govern it, settling FR4 (touch springs bypass the theme's motion tokens), FR7 (touch exits animate) and FR13 (the coarse-pointer resolver). An engineering owner records that decision by commenting /approve-spec <full head SHA> on this pull request; the author may do so if they are an engineering owner. Separately, the diff against main is the whole unmerged stack (about 30,500 changed lines, including the gesture, motion, harness and DropdownMenu touchOpen changes), so please rebase once the predecessors land, so that it contains only the Popover commit.

  • The two new Popover Effects (Popover.tsx:428, usePopoverSurfaceMotion.ts:88) should each say which external system they synchronize.
  • Popover.doc.mjs and the changeset say "under a finger", but the motion follows the device's coarse primary pointer, so a mouse on a tablet gets it and a finger on a touchscreen laptop does not.

[Automated review]

// it, as a UIKit popover (usePopoverSurfaceMotion.ts); a mouse keeps the
// layer's entrance.
const {contentRef: surfaceRef} = popover;
useIsomorphicLayoutEffect(() => {

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

architecture:react-component-runtime INV3 asks every new Effect to name the external system it synchronizes. This one only refreshes presentSurfaceRef for the show handler, and the comment above it describes the motion instead. Either say what it keeps in sync, or assign the ref without an Effect.

Copy link
Copy Markdown
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Fixed in 98eefa0: the comment above the Effect now names what it synchronizes. It keeps the layer's show handler, an event callback outside React, in step with the latest presentation call and the anchor element it reads, and it has nothing to clean up.

return motion;
}, []);

useEffect(

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This cleanup-only Effect releases the popover element's beforetoggle listener and its compositor motion (and any exit copy). A one-line comment naming that resource would satisfy INV3 of architecture:react-component-runtime.

Copy link
Copy Markdown
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Fixed in 98eefa0: the cleanup Effect now says what it releases when the component unmounts: the popover element's beforetoggle listener, its compositor animations and any exit copy still on screen.

usage: {
description:
'A click-triggered overlay anchored to a button or trigger element. Use it for secondary actions, inline confirmations, or supplementary information that does not warrant a full dialog. For hover previews use HoverCard, for brief helper text use Tooltip.',
'A click-triggered overlay anchored to a button or trigger element. Use it for secondary actions, inline confirmations, or supplementary information that does not warrant a full dialog. For hover previews use HoverCard, for brief helper text use Tooltip. Under a finger it is presented like a popover on iOS: it grows out of its trigger on UIKit\u2019s spring and shrinks back into it on dismissal; with reduced motion it fades on the same springs.',

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

"Under a finger" describes a per-input switch, but the code decides by the device: readTouchPresentation(...).isTouch is (pointer: coarse) (usePopoverSurfaceMotion.ts:101-103). A mouse on a tablet gets this motion and a finger on a touchscreen laptop does not. Suggest "On a device whose primary pointer is coarse (phones and tablets)…"; the same applies to the zh and dense copies and the changeset.

Copy link
Copy Markdown
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Fixed in 98eefa0: the docs (all three copies) and the changeset now say "On an iPhone or iPad (iOS, whose primary pointer is coarse)", which matches the resolver's iOS idiom: WebKit on iOS with a coarse primary pointer.

@github-actions

github-actions Bot commented Oct 24, 2026 •

Copy link
Copy Markdown
Contributor

PR Analysis Report

📚 Storybook Preview

View Storybook for this PR

🧪 Sandbox Preview

View Sandbox for this PR

Modified Components

MultiSelector (@astryxdesign/core) · View in Storybook
Metric Before After Delta
Entry File (ESM) 273B 273B 0B
Lines of Code 2631 2631 -
Complexity Very High Very High (340) -
Popover (@astryxdesign/core) · View in Storybook
Metric Before After Delta
Entry File (ESM) 412B 412B 0B
Lines of Code 977 1413 -
Complexity Very High Very High (147) -

Component Size

Component Import before Import after Delta CSS before CSS after Delta
core/AlertDialog 56.9KB 57.0KB +130B 12.4KB 12.4KB 0B
core/AppShell 57.9KB 58.0KB +101B 11.6KB 11.6KB 0B
core/AvatarGroupOverflow 39.9KB 40.0KB +137B 6.4KB 6.4KB 0B
core/Banner 47.8KB 47.9KB +134B 9.9KB 9.9KB 0B
core/BaseTypeahead 54.3KB 54.4KB +118B 9.9KB 9.9KB 0B
core/BottomSheet 34.0KB 49.0KB +15.1KB ⚠️ 7.9KB 7.9KB +2B
core/BottomSheetSwitcher 14.8KB 14.8KB 0B 3.3KB 3.3KB 0B
core/BreadcrumbItem 66.4KB 66.5KB +120B 11.0KB 11.0KB 0B
core/Button 43.3KB 43.4KB +112B 9.2KB 9.2KB 0B
core/Calendar 54.9KB 55.0KB +123B 10.0KB 10.0KB 0B
core/Carousel 50.2KB 50.1KB -100B 10.2KB 10.2KB 0B
core/ChatComposer 60.6KB 61.2KB +605B 10.8KB 10.8KB 0B
core/ChatComposerDrawer 23.9KB 23.9KB +15B 4.5KB 4.5KB 0B
core/ChatComposerInput 55.7KB 56.3KB +543B 10.1KB 10.1KB 0B
core/ChatComposerTokenElement 55.7KB 56.3KB +542B 10.1KB 10.1KB 0B
core/ChatDictationButton 46.5KB 46.6KB +119B 9.5KB 9.5KB 0B
core/ChatLayout 48.8KB 64.9KB +16.1KB ⚠️ 9.9KB 10.0KB +39B
core/ChatLayoutScrollButton 46.4KB 46.5KB +95B 9.6KB 9.6KB 0B
core/ChatMessage 23.1KB 23.1KB +13B 3.5KB 3.5KB 0B
core/ChatMessageBubble 7.0KB 7.0KB 0B 3.6KB 3.6KB 0B
core/ChatMessageList 28.9KB 28.9KB +12B 7.8KB 7.8KB 0B
core/ChatMessageMetadata 25.8KB 25.8KB +12B 3.9KB 3.9KB 0B
core/ChatSendButton 45.8KB 45.9KB +108B 9.2KB 9.2KB 0B
core/ChatSystemMessage 6.7KB 6.7KB 0B 3.7KB 3.7KB 0B
core/ChatTokenizedText 6.9KB 6.9KB 0B 3.9KB 3.9KB 0B
core/ChatToolCalls 31.9KB 31.9KB +12B 8.9KB 8.9KB 0B
core/CheckboxInput 49.9KB 50.0KB +116B 9.3KB 9.3KB 0B
core/CheckboxListItem 54.0KB 54.1KB +105B 10.5KB 10.5KB 0B
core/ClickableCard 12.8KB 12.9KB +117B 6.9KB 6.9KB 0B
core/CodeBlock 60.5KB 60.6KB +118B 10.7KB 10.7KB 0B
core/Collapsible 11.7KB 11.8KB +113B 4.2KB 4.2KB 0B
core/CommandPalette 50.9KB 51.0KB +77B 11.8KB 11.8KB 0B
core/CommandPaletteItem 8.4KB 8.5KB +110B 3.5KB 3.5KB 0B
core/ComplexSelector 55.8KB 55.9KB +144B 10.6KB 10.6KB 0B
core/ContextMenu 77.7KB 77.5KB -221B 14.6KB 14.6KB +4B
core/ContextMenuItem 16.6KB 16.7KB +146B 5.2KB 5.2KB 0B
core/DateInput 99.9KB 113.9KB +14.1KB ⚠️ 14.8KB 14.8KB +3B
core/DateRangeInput 69.4KB 69.5KB +122B 11.2KB 11.2KB 0B
core/DateTimeInput 110.1KB 124.3KB +14.2KB ⚠️ 15.2KB 15.2KB +3B
core/DialogHeader 48.8KB 48.9KB +114B 9.8KB 9.8KB 0B
core/DrawerHeader 48.9KB 49.0KB +109B 11.2KB 11.2KB 0B
core/DropdownMenu 72.7KB 72.5KB -170B 14.7KB 14.7KB +5B
core/DropdownMenuCheckboxItem 16.1KB 16.2KB +106B 5.6KB 5.6KB 0B
core/DropdownMenuItem 15.4KB 15.5KB +101B 5.2KB 5.2KB 0B
core/DropdownMenuRadioItem 16.2KB 16.3KB +110B 5.6KB 5.6KB 0B
core/DropdownMenuSubMenu 58.1KB 58.2KB +105B 9.5KB 9.5KB 0B
core/FileInput 54.1KB 54.2KB +114B 10.3KB 10.3KB 0B
core/IconButton 43.3KB 43.4KB +124B 9.2KB 9.2KB 0B
core/Item 11.4KB 11.5KB +98B 4.7KB 4.7KB 0B
core/LayerProvider 63.3KB 63.4KB +132B 10.1KB 10.1KB 0B
core/Lightbox 51.2KB 51.3KB +107B 9.8KB 9.8KB 0B
core/Link 43.5KB 43.6KB +125B 7.6KB 7.6KB 0B
core/ListItem 53.5KB 53.6KB +114B 10.5KB 10.5KB 0B
core/Markdown 144.5KB 144.3KB -201B 17.4KB 17.4KB +4B
core/MobileNav 51.0KB 51.1KB +107B 10.1KB 10.1KB 0B
core/MobileNavToggle 46.2KB 46.3KB +116B 9.4KB 9.4KB 0B
core/MoreMenu 72.9KB 72.7KB -190B 14.7KB 14.7KB +5B
core/MultiSelector 76.2KB 75.8KB -353B 14.6KB 14.6KB +4B
core/NumberInput 55.7KB 55.8KB +119B 10.7KB 10.7KB 0B
core/Outline 28.6KB 28.7KB +126B 4.0KB 4.0KB 0B
core/Pagination 87.7KB 87.9KB +127B 15.3KB 15.3KB +5B
core/Popover 49.8KB 62.7KB +12.8KB ⚠️ 12.1KB 12.1KB +4B
core/PowerSearch 155.1KB 168.9KB +13.9KB ⚠️ 18.6KB 18.6KB +4B
core/RadioListItem 52.1KB 52.3KB +123B 9.7KB 9.7KB 0B
core/SegmentedControlItem 8.6KB 8.7KB +116B 3.9KB 3.9KB 0B
core/SelectableCard 12.8KB 12.9KB +114B 7.1KB 7.1KB 0B
core/Selector 79.1KB 78.8KB -346B 15.0KB 15.0KB +5B
core/SelectorOption 14.5KB 14.6KB +97B 5.1KB 5.1KB 0B
core/SideNav 58.0KB 58.1KB +109B 10.6KB 10.6KB 0B
core/SideNavCollapseButton 46.6KB 46.7KB +102B 9.5KB 9.5KB 0B
core/SideNavHeading 54.7KB 54.8KB +108B 10.1KB 10.1KB 0B
core/SideNavItem 54.5KB 54.6KB +108B 10.1KB 10.1KB 0B
core/Step 32.4KB 32.6KB +132B 5.3KB 5.3KB 0B
core/Stepper 47.4KB 47.5KB +118B 9.6KB 9.6KB 0B
core/Switch 48.4KB 48.5KB +121B 9.3KB 9.3KB 0B
core/Tab 9.7KB 9.8KB +119B 4.1KB 4.1KB 0B
core/TabMenu 51.6KB 51.7KB +98B 10.0KB 10.0KB 0B
core/Table 84.0KB 83.7KB -323B 15.1KB 15.1KB +4B
core/TableCell 78.8KB 78.5KB -247B 14.8KB 14.8KB +4B
core/TableHeaderCell 78.6KB 78.3KB -289B 14.8KB 14.8KB +4B
core/TableSelectionToolbar 52.4KB 52.5KB +110B 11.2KB 11.2KB 0B
core/TextInput 53.5KB 53.6KB +111B 10.5KB 10.5KB 0B
core/Thumbnail 50.7KB 50.8KB +115B 11.0KB 11.0KB 0B
core/TimeInput 86.8KB 101.0KB +14.1KB ⚠️ 13.8KB 13.8KB +4B
core/Timestamp 27.5KB 27.5KB +13B 9.5KB 9.5KB 0B
core/Toast 59.8KB 60.0KB +115B 9.7KB 9.7KB 0B
core/ToggleButton 44.1KB 44.2KB +100B 9.3KB 9.3KB 0B
core/Token 29.6KB 29.7KB +124B 4.5KB 4.5KB 0B
core/Tokenizer 64.8KB 64.9KB +128B 11.7KB 11.7KB 0B
core/TopNav 51.9KB 52.0KB +116B 10.4KB 10.4KB 0B
core/TopNavHeading 54.2KB 54.3KB +113B 9.9KB 9.9KB 0B
core/TopNavItem 9.0KB 9.2KB +116B 3.8KB 3.8KB 0B
core/TopNavMegaMenu 54.2KB 54.3KB +133B 10.8KB 10.8KB 0B
core/TopNavMegaMenuItem 9.1KB 9.2KB +119B 4.1KB 4.1KB 0B
core/TopNavMenu 53.6KB 53.7KB +109B 10.1KB 10.1KB 0B
core/TreeList 32.5KB 32.7KB +124B 4.7KB 4.7KB 0B
core/Typeahead 61.5KB 61.6KB +114B 11.3KB 11.3KB 0B

Sizes are gzip. Import counts the JavaScript the import loads eagerly; CSS counts the package stylesheet rules referenced by the modules it can load from its own package, lazily loaded ones included.

⚠️ Touch-only size budget

These components grew past the touch-only budget (2 KB gzip JavaScript or 1 KB gzip CSS per component). If the growth runs only on a coarse pointer, load its JavaScript lazily so the import does not carry it, or justify the cost in the pull request description; CSS stays in the package stylesheet, so justify it.

Component JavaScript CSS
core/BottomSheet +15.1KB ⚠️ +2B
core/ChatLayout +16.1KB ⚠️ +39B
core/DateInput +14.1KB ⚠️ +3B
core/DateTimeInput +14.2KB ⚠️ +3B
core/Popover +12.8KB ⚠️ +4B
core/PowerSearch +13.9KB ⚠️ +4B
core/TimeInput +14.1KB ⚠️ +4B

Bundle Size Summary

Gzip figures measure each package's entry file, not the code an import pulls in.

Package Entry (ESM) Entry gzip before Entry gzip after Delta
@astryxdesign/core 4.9KB 1.2KB 1.2KB 0B
Package stylesheet Gzip before Gzip after Delta
@astryxdesign/core 34.6KB 34.6KB +26B

Accessibility Audit

Status: 2 accessibility violation(s) found — 2 serious.

ChatComposer - 1 issue(s)
  • 🟠 serious: Ensure the contrast between foreground and background colors meets WCAG 2 AA minimum contrast ratio thresholds
    • Rule: color-contrast · Affects 1/19 stories · Learn more
    • WCAG: 1.4.3 (Level AA)
ChatComposerInput - 1 issue(s)
  • 🟠 serious: Ensure the contrast between foreground and background colors meets WCAG 2 AA minimum contrast ratio thresholds
    • Rule: color-contrast · Affects 1/18 stories · Learn more
    • WCAG: 1.4.3 (Level AA)

Visual Regression

55 of 502 shot(s) changed.

A change here is a question, not a failure: check whether the after is the
picture you intended. Record that review on the PR. Baseline maintenance is an
explicit dispatch of CI; this report never rewrites the baseline or adds a release gate.

component story theme mode pixels
Selector Indicator Space Bottom Sheet Narrow End RTL neutral light 753,933
Selector Indicator Space Bottom Sheet Wide Start neutral light 740,072
RichTextEditor Markdown parity: side by side probe dark 558,840
RichTextEditor Markdown parity: side by side probe light 540,756
Chat Full AI Chat probe light 440,175
Chat Full AI Chat probe dark 438,105
AppShell With Mobile Nav probe light 217,010
AppShell With Mobile Nav probe dark 216,960
Chat Empty State probe light 122,185
Chat Empty State probe dark 120,076
Collapsible Dividers probe dark 66,445
Collapsible Dividers probe light 66,445
AppShell Playground neutral dark 65,198
AppShell Playground neutral light 63,788
Chat Default neutral dark 36,304
Chat Default neutral light 35,767
ChatAutoScroll Scroll Behavior Comparison neutral dark 15,378
ChatAutoScroll Scroll Behavior Comparison neutral light 14,107
Chat With Attachments probe light 13,406
Chat With Attachments probe dark 11,232

and 35 more.


Generated by PR Enrichment workflow | Storybook | Sandbox | View full report

@vjeux
vjeux force-pushed the uikit/c26-popover-present branch from e370bdb to 7ffbca4 Compare October 24, 2026 18:32
@vjeux vjeux changed the title feat(Popover): under a finger it grows out of its trigger and shrinks back into it feat(Popover): on iOS, under a finger, it grows out of its trigger and shrinks back into it Oct 24, 2026

@astracat-bot astracat-bot Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This pull request can't be approved yet: Popover's iOS touch presentation rests only on draft spec:AST-094, added in this stack, so an engineering owner needs to approve that record for this head or name the one that should govern it, settling the iOS-only gate the code applies (FR13 as drafted keys touch behaviour on any coarse pointer), FR4 (touch springs bypass the theme's motion tokens) and FR7 (touch exits animate). An engineering owner records that decision by commenting /approve-spec <full head SHA> on this pull request; the author may do so if they are an engineering owner. Separately, the diff against main is the whole unmerged stack (about 31,000 authored lines), so please rebase once the predecessors land so that it contains only the Popover commit.

  • The useMenuPress record still gives a 500 ms hold-open while the code now defaults to 150 ms, and it does not list the new public continueGesture.
  • The two new Popover Effects (Popover.tsx:429, usePopoverSurfaceMotion.ts:89) should each say which external system they synchronize.

[Automated review]

@@ -140,6 +140,7 @@ Consumer migration instructions belong in consumer docs and release notes.
| stray-click window | 400 ms, or the next `pointerdown` | how long after a tracked release the browser's click is still swallowed | `MENU_PRESS_STRAY_CLICK_MS` | `module:DropdownMenu/useMenuPress` | stable |
| settle time | 300 ms | proposed: how long an opening press must last before its release may act | `MENU_PRESS_SETTLE_MS` | `module:DropdownMenu/useMenuPress` | proposed |
| long-press delay | 500 ms | proposed: how long a finger rests on the trigger before the menu opens under it | `longPressDelayMs` | `module:DropdownMenu/useMenuPress` | proposed |

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This row still gives 500 ms, but MENU_PRESS_LONG_PRESS_MS now reads menu.holdOpenMs (150, motion/uikit/menu.ts:43) and useMenuPress.doc.mjs documents a default of 150. The public-contract row also omits the new continueGesture and MenuPressContinuation. Please make the record match the code, or keep the 500 ms default, in the pull request that owns this change.

@vjeux vjeux Oct 24, 2026 •

Copy link
Copy Markdown
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This record comes from the DropdownMenu press change below this one in the stack, and that change is being brought in line with the code (the 150 ms hold-open and continueGesture). Nothing to change in this pull request.

thresholds its UIKit counterpart uses: 0.5 s and 10 pt for a plain long
press, the measured values for context menus and menus. A rubber band MUST
use the coefficient its use measures.
- **FR13 — One touch-presentation resolver.** Whether a component shows its

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

FR13 keys touch behaviours on a coarse pointer, but the code in this stack also gates Popover's and DropdownMenu's motion on iOS WebKit (IOS_SUPPORTS_QUERY in utils/touchPresentation.ts, cited as "D-01", which no record defines). If iOS only is intended, the governing record needs to say so; the Non-goals leave that per-component decision to each component's record.

Copy link
Copy Markdown
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Agreed that the record has to say it. The iOS-only gate is part of the owner decision this pull request waits on. In 98eefa0 the undefined "D-01" citation is gone from Popover.tsx and usePopoverSurfaceMotion.ts; those now cite AST-094 FR4 (draft). touchPresentation.ts belongs to #8062.

@vjeux
vjeux force-pushed the uikit/c26-popover-present branch from 7ffbca4 to 98eefa0 Compare October 24, 2026 22:01
@vjeux vjeux changed the title feat(Popover): on iOS, under a finger, it grows out of its trigger and shrinks back into it feat(Popover): on iPhone and iPad, it grows out of its trigger and shrinks back into it Oct 24, 2026

@astracat-bot astracat-bot Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This pull request can't be approved yet: Popover's iOS touch presentation rests only on draft spec:AST-094, added in this stack, so an engineering owner needs to choose the gate for UIKit motion (iOS only, as Popover does, or every coarse pointer, as FR13 is drafted and DropdownMenu does) and approve that record for this head or name the one that should govern it, including FR4 (touch springs bypass the theme's motion tokens) and FR7 (touch exits animate). An engineering owner records that decision by commenting /approve-spec <full head SHA> on this pull request; the author may do so if they are an engineering owner. Separately, the diff against main is still the whole unmerged stack (about 31,000 authored lines), so please rebase once the predecessors land so that it contains only the Popover commit.

  • Under Reduce Motion the Popover and touch-menu fades run 532–588 ms on springs, while design:reduced-motion DR2 on main now requires an opacity-only fade of 200 ms or less.
  • The touch resolver's (width < 744px) compact edge contradicts spec:AST-012 FR9 on main (compact below the md point, 768 by default), which also moves the adaptive bottom-sheet boundary.
  • The useMenuPress record still gives a 500 ms hold-open while the code defaults to 150 ms, and it does not list continueGesture.

[Automated review]

export const TOUCH_QUERY = '(pointer: coarse)';

/** The viewport is compact: layout behaviours. */
export const COMPACT_QUERY = '(width < 744px), (height < 500px)';

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

spec:AST-012 FR9 on main defines compact as a viewport width below the effective md point (768 by default) or a height below 500, and names the web touch presentation resolver as one of its users, with no size numbers of its own. With (width < 744px) a coarse-pointer screen 744–767 px wide (an iPad mini in portrait) is not compact here but is under FR9, and the adaptive sheet query built on this constant disagrees with it too. Please take the width edge from the md point.

springs.popoverPresent,
velocity,
),
{crossfade: springs.popoverPresent},

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Under Reduce Motion this cross-fade follows springs.popoverPresent, so the fade-in lasts the spring's settle time, 532 ms (549 ms for the dismiss below). design:reduced-motion DR2 on main requires a touch entrance or exit to change opacity only and finish in 200 ms or less, and its verification fails on a spring. A timed fade of 200 ms or less would conform.

}

/** Reduce Motion: a cross-fade on the menu's own spring, as UIKit's. */
const REDUCED_MOTION = {crossfade: springs.menuReducedMotion} as const;

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

The same DR2 issue for the touch menu: a cross-fade on springs.menuReducedMotion runs about 588 ms, and it applies on every coarse pointer, not only on iOS.

@cixzhang

Copy link
Copy Markdown
Contributor

Posted by Cindy's agent on her behalf.

Parts of this PR re-implement behavior that already exists, or is being specified, as a shared part of core. Converging keeps one implementation per behavior:

  • Reduced motion. core/src/Popover/popoverSurfaceMotion.ts:315 handles reduced motion locally. Per design:reduced-motion (DR1–DR4), the animator is the one place that resolves it (touch cross-fades in 200 ms or less with no travel, a fine pointer changes at once), and core has no opt-out, so reducedMotion: 'keep' should be removed.

This is about where the behavior lives, not about the PR's intent.

@vjeux

vjeux commented Oct 24, 2026

Copy link
Copy Markdown
Contributor Author

Agreed: one implementation.

@vjeux
vjeux force-pushed the uikit/c26-popover-present branch from 98eefa0 to c8c4113 Compare October 25, 2026 03:50
@vjeux vjeux changed the title feat(Popover): on iPhone and iPad, it grows out of its trigger and shrinks back into it feat(Popover): under a finger, it grows out of its trigger and shrinks back into it Oct 25, 2026
@github-actions github-actions Bot added needs:design-review Affects visuals — Design should review and removed needs:spec-owner-review Current knowledge records await owner approval labels Oct 25, 2026
vjeux added 25 commits October 29, 2026 10:06
…mates while it runs

The proof read the element's animations 230 ms in, after the dip had
ended, and asserted only that every animated key is opacity, which an
empty list passes: with the cross-fade removed from the plan (the move
still landing), the proof still passed. It now reads the keyframe keys
right after the call starts and asserts they include opacity and nothing
else; the same mutant fails it. Chromium and WebKit pass. (F1's in-flight
read from c648034.)
…roller, and its claimed moves are cancelled under pointer events

Two comparisons stop at the shadow boundary, each failing a case:
- once the host's listener on a recognizer's inner node has seen the
  finger, isFingerDownIn reads it as outside a light-DOM scroller around
  that root, so a scroll under it is not the finger's (FR20);
- under inputMode 'pointer-events', a claimed pan on a shadow host
  cancels none of its finger's moves over the inner content, since the
  finger's target is the inner node and its touches reach the host
  retargeted (FR19).
…the flat tree

isFingerDownIn and the pointer-events finger match compare with
containsAlongFlatTree, as the scroll watch already does: a finger on
content inside an open shadow root is down in the scroller around that
root, and its touches, retargeted to the shadow host, match its pointer
finger, so a claimed pan cancels its moves there (spec:AST-094 FR19,
FR20).
…achments asks, and only then

The host let the last attachment decide whether an element is an action
group (useGestureRecognizer always passes the option), and never
recomputed it at a detach: a plain attachment after the group's turned
the group off, and a group's attachment released left a recognizer that
never asked taking presses under a fine pointer. Fails until the host
counts the attachments that ask.
…ents asks

The host counts the attachments that pass actionGroup: true and keeps the
element a group while one remains, recomputed at each detach. An
attachment that passes false, as useGestureRecognizer does by default,
no longer turns a group off, and a group's last asking attachment taking
its leave ends the group.
… that content

The presented hit test takes the document's elementFromPoint, which
answers a shadow host for anything inside its open root, and compares
with Node.contains, which stops at the boundary: a recognizer on a
control inside a moving sheet's shadow root gets no finger, and the tap's
click goes to the host. Fails until the hit test descends into open roots
and compares along the flat tree.
Where a moving element is drawn away from its layout box, the host
hit-tests what is drawn under the finger with the document's
elementFromPoint, which answers a shadow host for anything inside its
open root. The hit test now descends through each open root's own
elementFromPoint and compares with the movers along the flat tree, so a
recognizer on a control inside a moving sheet's shadow root gets its
finger and the tap clicks that control.
…nt lets go

The host's touch-action rules sit in an adopted sheet or a style element
per document or shadow root, and were never removed, so a page whose
last recognizer detached kept them, against spec:AST-094 FR24 (nothing
touch-related remains after the last instance unmounts). Fails until a
root's rules go with its last marked element.
…th its last marked element

The touch-action writer records which elements it marked in each
document or shadow root, and when the last one is unmarked (its last
recognizer detached) it removes that root's adopted sheet or style
element, so nothing touch-related remains after the last instance
unmounts (spec:AST-094 FR24). A later mark writes the rules again; an
element marked in another root first lets go of the old one.
… the inline style it reads

- The motion registry, the host's engine gate and the README name the
  presented hit test as an engine workaround (spec:AST-013 FR6) with its
  review condition (re-measure on each iOS release; remove it once iOS
  WebKit hit-tests a compositor-moved element where it is drawn) and its
  regression fixture.
- While a curve runs the animator holds the value it starts from inline,
  so presentation.ts and the README no longer say the inline style holds
  the end.
…core/internal/touch

Core ships the internal entry @astryxdesign/core/internal/touch, which
re-exports the gesture primitives for Astryx's own packages, and the
Lab-import guard fails a Lab import of core outside core's exports
(architecture:react-component-runtime INV13). The README and the barrel's
header named internal workspace imports and said nothing here is
exported; they now name that entry.
…ill needs the element, and the listeners that cancel

The release note, the stream's header, the host's comment and the README
said the stream is one passive listener per event type and that a
document-capture stopPropagation no longer starves the recognizers. Such a
stop never hid a listener on the same node, and some subscriptions cancel.
They now say what changed: an app's window-capture stopPropagation, or a
document-capture stopImmediatePropagation registered before core, no
longer hides a touch; a recognizer that must claim still needs the touch to
reach its element; the gesture host's touchend, click and contextmenu
cancel while a claimer is attached and the page hold's touchmove while it
holds; and the stream stays ahead of an app's window-capture listener only
until a type's listener is re-added. The README's list of blocking
touchmove listeners gains the claimed touch's target and the document
while a claiming element moves.
…default it moves

The {stylexOptions} form of astryxStylex now passes StyleX
treeshakeCompensation: true unless the caller sets it. spec:AST-017 FR3
asks the release note to name the old and new default and the option
that restores the old one; it now does.
…er and for the two stops the input stream fixes

- A still finger with sub-pixel jitter over a scroll view keeps its tap
  and scrolls nothing (spec:AST-094 FR18–FR22).
- A tap is still recognized under an app's window-capture
  stopPropagation, and under a document-capture
  stopImmediatePropagation registered before core's: the recognizers hear
  touches on the window's capture phase.
Chromium and WebKit pass.
…s once

Where nothing that claims is attached, the host's touchend listener is
passive and cannot cancel the engine's own click after a retargeted tap
clicks what is drawn. The shared click guard swallows that late click
whatever is attached; this case pins it, as asked on meta#8293.
…esture host's subscriptions

The gesture host subscribes no click: the one cancelling click subscriber
is the click guard's, added at a window's first arm and kept. The release
note, the stream's header and the gestures README listed click with the
host's touchend and contextmenu; they now name the guard's own.
BottomSheet.test.tsx's imports from both sides are kept; the search goldens
are regenerated after the remaining merges.
meta#8360 carries the gesture foundation this branch took from meta#8076. The only
conflict was the shared motion tables list in tableImports.test.ts, where
this branch adds the keyboard table and meta#8360 the long-press table; both
entries are kept, meta#8360's text unchanged.
Folds this pull request onto the canonical gesture foundation, meta#8360's
head, which carries meta#8076, and onto main, in place of the old meta#8076 and
harness copies it carried. No conflicts.
… guide

The keyboard layout guide (this pull request) reads where focus moves to tell
a keyboard that comes up from one that stays: meta#8559 removed the store's focus
reports because nothing there read them, so they return here with their first
reader. One pair of capture listeners on the document, attached while
anything subscribes, reports each focusin and focusout with the current
height; BottomSheet's reveal still acts on viewport reports only.
Conflicts were in this stack's own keyboard files: the browser-support
sentence keeps ChatLayout's composer and takes meta#8559's page wording,
BottomSheet's test imports follow the sheetKeyboard split, and the keyboard
notes keep both the sheet's and ChatLayout's Chrome 124 findings. The search
goldens are regenerated after the merge.
…op-level page

The composer's tap route, its scroll-free focus and Done's park attach only
where the keyboard is measurable, which excludes a page inside an iframe
(spec:AST-099 FR7); there the browser's own focus applies. The docs and
changeset now say so.
…e Popover touch presentation

AST-057 takes the dependencies' text, which is main's (meta#8646): the tuning bullet this branch once restored is superseded, and the Popover touch presentation does not touch row actions.
… ChatLayout

BottomSheet's useSheetKeyboard moved to keyboard/sheetKeyboard.ts, and it
subscribes to the keyboard layout guide and rides Gboard with rideKeyboard
as ChatLayout does, but the two modules' headers named only ChatLayout, and
BottomSheetPanel's related-files list and the keyboard notes still pointed
at keyboardHeight.ts. They now name the hook and its file.
@vjeux
vjeux marked this pull request as draft October 29, 2026 22:33

@astracat-bot astracat-bot Bot left a comment

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Changes are needed before this can be approved: Popover's grow and shrink under a finger follows the current Popover and touch-presentation specs, but the branch still carries about 39,000 lines of open predecessor work and layer-runtime record text an engineering owner asked to drop. Please address these, then rebase once #8076, #8186 and the keyboard chain land so the diff is only the Popover change:

  • Restore main's docs/architecture/layer-runtime.md, since INV13 and the Exit copy section are being decided on #8186.
  • Play the two popover springs through registered motion roles, as AST-094 FR4 and FR31 require now that DEC-15 lets a theme's knobs reach every role, or have an engineering owner amend those claims.
  • Take the presentation hold from the layer runtime (#8587) instead of isTouchPresentationRef, per layer-runtime INV14.
  • Add recordings from a physical iPhone in Safari and a physical Android phone in Chrome, which AST-094's platform support asks for.

[Automated review]

correct, and the runtime polls nothing: an anchor that a scrolled
container hides is followed again when an intersection observer reports it
back in view.
- **INV13 — One exit copy per closing layer.** A layer's close plays on at most

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

An engineering owner asked for this pull request's layer-runtime text to go back to main, since INV13 and the Exit copy section are being decided on #8186. Please restore main's version of this file here; the Current gaps line about Popover's latch can go with it once Popover takes the runtime's hold.

Comment on lines +214 to +216
// The popover's two springs are this component's measured values, not
// motion roles (touch motion stays internal, spec:AST-094 DEC-11): they
// play as given, so no table is registered and no other row is bundled.

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

AST-094 FR4 requires every spring a touch presentation plays to be a motion role ("MUST NOT play a literal"), FR31 grows and shrinks a Popover "on its motion roles", and since DEC-15 a theme's tempo and character reach every FR4 role (AST-108 FR3). These two springs stay out of SPRING_ROLES, so they would keep UIKit's literal timing once the knobs land. Registering them as internal roles (DEC-15 keeps per-role tables non-public), or an engineering owner amending FR4 and FR31, resolves it.

detach: () => void;
} | null>(null);
// Whether the presentation in progress is the touch one.
const isTouchPresentationRef = useRef(false);

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

This keeps the chosen presentation from the open until the close, which is the presentation hold layer-runtime INV14 gives the runtime ("A component that needs one of these uses the runtime's rather than building its own"). Please take it from the runtime's hold (#8587) before this lands, or record the latch through a record change an engineering owner approves.

*
* Touch-only code a pointer page carries (architecture:component-style-authoring
* INV6): components use the global touch module once it is installed
* (`TouchSupport.install()`, proposed in #8464), so per-component lazy swaps

Copy link
Copy Markdown

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

TouchSupport.install() did not land: react-component-runtime INV13 says components import the shared touch modules statically and "There is no install call". This justification should cite INV13 instead.

@vjeux

vjeux commented Oct 30, 2026

Copy link
Copy Markdown
Contributor Author

At 66038f6:

This branch was successfully deployed

1 active deployment
Preview — 66038f6a Deployed Oct 30, 2026 by vercel[bot]
Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment

Labels

CLA Signed This label is managed by the Meta Open Source bot. needs:design-review Affects visuals — Design should review needs:spec-owner-review Current knowledge records await owner approval

Projects

None yet

Development

Successfully merging this pull request may close these issues.

3 participants
